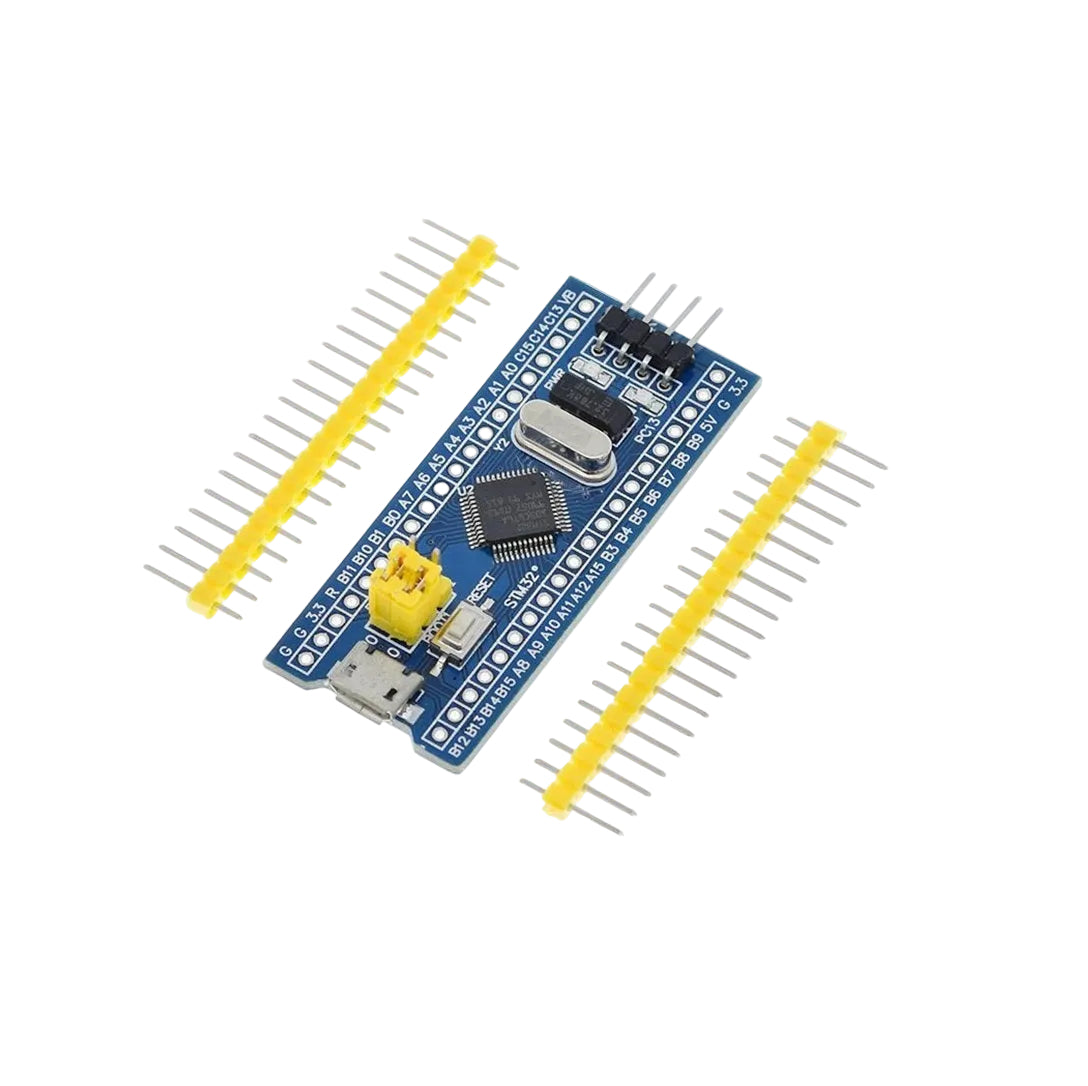

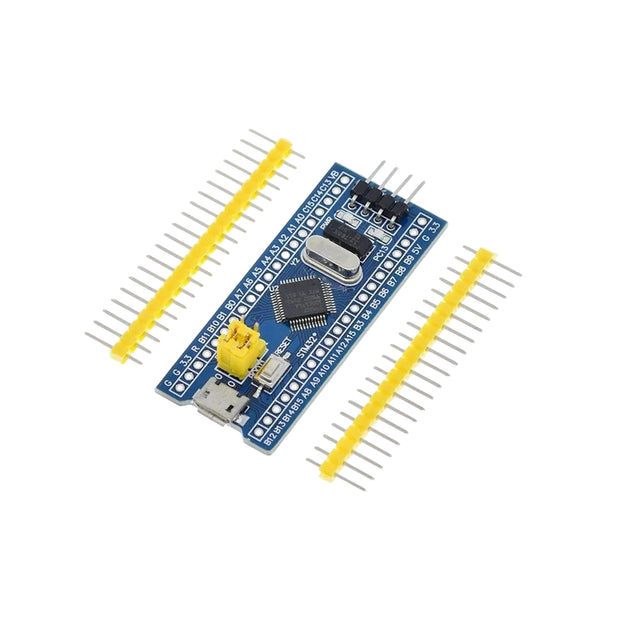

STM32F103C8T6 Development Board - ARM Cortex-M3 72MHz
STM32F103C8T6 Development Board - ARM Cortex-M3 72MHz is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Domestic shipping is handled by Akis Express in one working day for pickup points and 2-3 working days for door to door delivery. For international shipping there is option for a Post Office or a FedEx Express.
STM32F103C8T6 Development Board - ARM Cortex-M3 72MHz
STM32F103C8T6 Development Board - ARM Cortex-M3 72MHz is backordered and will ship as soon as it is back in stock.
The STM32F103C8T6 Development Board is a compact and powerful microcontroller board designed for embedded systems and advanced electronics projects, making it an excellent choice for electronics enthusiasts, developers and DIY makers.
Based on the STM32F103C8T6 ARM Cortex-M3 microcontroller, this board provides fast processing performance with a clock speed of up to 72MHz, making it ideal for real time control, automation, robotics and sensor applications.
With Micro USB connectivity, a standard SWD programming interface, BOOT selection and accessible I/O connections, it provides a flexible platform for prototyping and developing custom embedded applications.
Perfect for makers, students and STEM labs where performance, compact design and flexibility are essential.
Highlights:
- ARM Cortex-M3 MCU: Powerful 32-bit architecture for embedded applications.
- 72MHz Clock Speed: Fast processing for real time and demanding projects.
- Compact Design: Small form factor ideal for embedded systems and prototyping.
- Micro USB Interface: Convenient connection for power with reserved USB communication functionality.
- SWD Programming: Standard SWD interface supporting ST-Link and J-Link programmers.
Specifications:
- Type: Microcontroller development board.
- Microcontroller: STM32F103C8T6.
- Core: ARM Cortex-M3.
- Clock Speed: Up to 72MHz.
- Crystal Oscillator: 8MHz.
- Voltage Regulator: 3.3V.
- Maximum Current: 800mA.
- Pin Spacing: 2.54mm.
- USB Interface: Micro USB.
- Programming or Debug Interface: SWD.
- BOOT Selection: On board BOOT selection port.
- Application: Embedded systems, robotics, automation, prototyping and DIY electronics.
- Dimensions: ~53×22×8mm.
- Weight: ~9g.
Ideal For:
- 🔧 Embedded systems and controller projects.
- ⚡ Real time control and automation.
- 🤖 Robotics and electronics projects.
- 🧰 DIY builds and advanced prototyping.
- 🎓 STM32 & STEM education projects.
Note:
- An external programmer or debugger such as ST-Link or J-Link can be connected through the SWD interface.
- Header pins included but are not soldered.
- Product appearance may vary slightly from the images shown.
- Text or markings on the board may differ depending on the batch.
