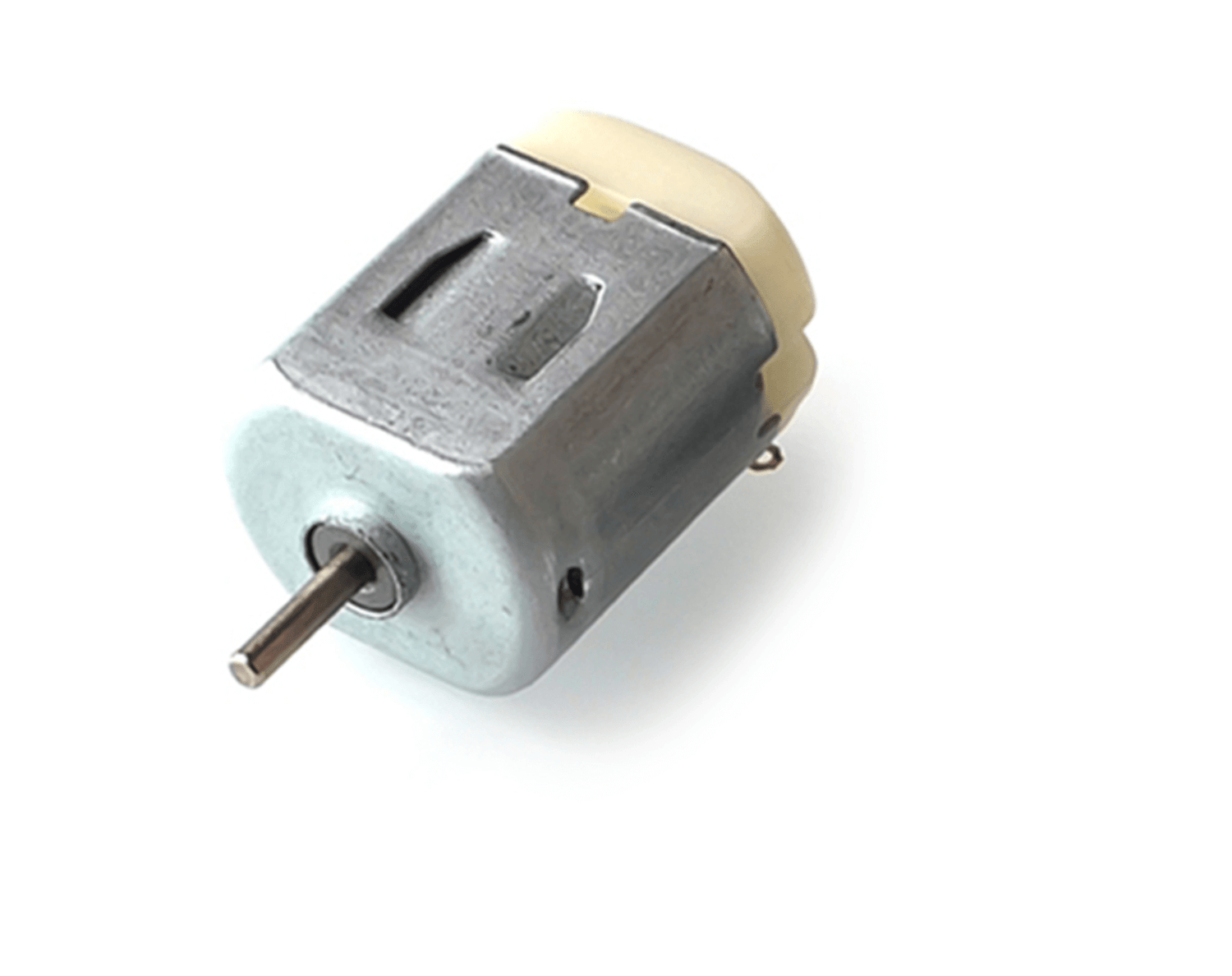

DC Motor 3-6V

The DC Motor 3-6V is a simple and versatile brushed motor designed for basic motion and rotation applications in electronics and robotics projects.

This motor operates on a DC voltage between 3V and 6V, making it easy to power using batteries or standard power supplies. When voltage is applied, the motor spins continuously, and its speed can be controlled by adjusting the input voltage or using PWM signals through a motor driver.

Thanks to its lightweight design and straightforward operation, this motor is ideal for beginner projects, small robot builds, fans, and DIY mechanisms. It can be easily integrated with motor drivers like L298N, L9110, or MX1508 for full control using microcontrollers such as Arduino or ESP32.

Perfect for makers looking for a reliable and affordable DC motor for everyday electronics projects.

Highlights:

• Wide Voltage Range: Operates from 3V to 6V DC.
• Simple Operation: Continuous rotation when powered.
• Speed Control Compatible: Can be controlled via PWM using motor drivers.
• Lightweight Design: Ideal for small and portable projects.
• Easy Integration: Works with common motor drivers and microcontrollers.

Specifications:

• Operating Voltage: 3-6V.
• Current: 0.35-0.4A.
• No-load Speed: ~20000 RPM @ 3V, 40000 RPM @ 6V.
• Motor Type: Brushed DC motor.
• Rotation Type: Continuous.
• Shaft Type: Round shaft.
• Shaft Length: ~10mm.
• Shaft diameter: ~2mm.
• Dimensions: ~37×17×20mm.

Ideal For:

• 🤖 Basic robotics projects.

• 🚗 DIY robot cars.

• ⚙️ Simple motion mechanisms.

• 🔧 DIY automation mechanisms.

• 🎓 Arduino & STEM education projects.


Note:

• Product appearance may vary slightly from the images shown.

• Text or markings on the motor may differ depending on the batch.
