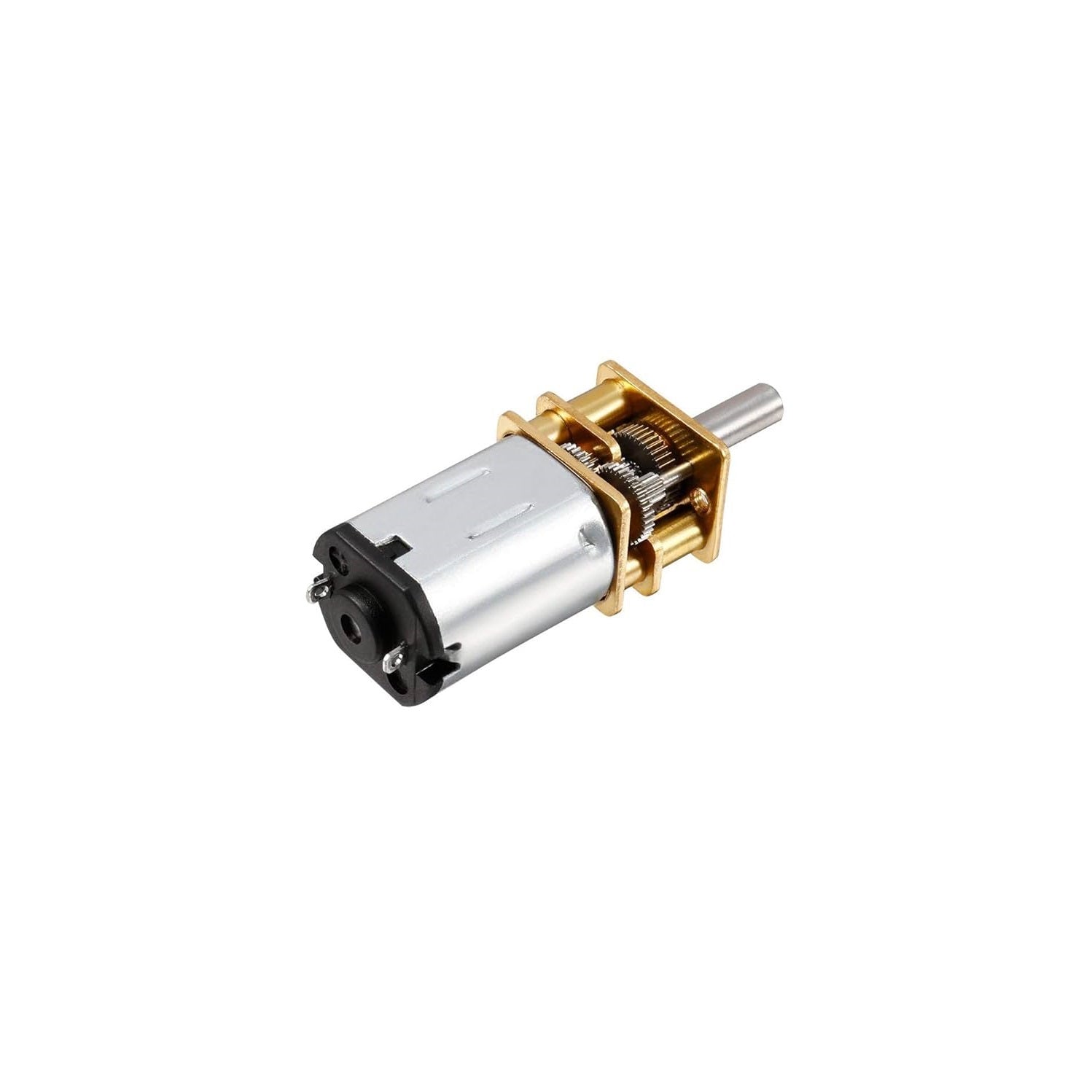

N20 Metal Gear Motor 6V 300RPM

The N20 Metal Gear Motor 6V 300RPM is a compact and powerful DC gear motor designed for applications that require precise speed control and high torque in a small form factor.

This motor uses a metal gearbox to reduce speed while increasing torque, making it ideal for robotics and mechanical projects where reliability and durability are important. With a rated speed of 300 RPM at 6V, it offers a great balance between speed and controlled movement.

Thanks to its small N20 form factor, this motor is perfect for tight spaces and lightweight designs. It can be easily paired with motor drivers such as L298N, MX1508, or L9110 for full control via microcontrollers like Arduino, ESP32, or Raspberry Pi.

Widely used in robot cars, gear mechanisms, automation systems, and STEM projects, this motor is a must have for makers building compact motion systems.

Highlights:

• Compact N20 Form Factor: Small size ideal for space constrained projects.
• Metal Gearbox: Durable gears provide higher torque and longer lifespan.
• Balanced Performance: 300 RPM offers a good mix of speed and control.
• Easy Integration: Works with common motor drivers and microcontrollers.
• Versatile Use: Suitable for robotics, automation, and mechanical systems.

Specifications:

• Operating Voltage: 3-6V.

• Rated Voltage: 6V.

• No-load Speed: ~300 RPM @ 6V.

• Current (no load): ~60-100mA.
• Stall current: Up to 1.2A.
• Gear ratio: ~1:30.
• Gear Type: N20 metal gearbox.

• Motor Type: DC brushed motor.

• Shaft Type: D-shaft.

• Shaft Length: ~10mm.

• Gear Motor Size: ~26×10×9mm.

• Motor Length (with gearbox): ~36mm.

Ideal For:

• 🤖 Mini robot car projects.

• 🚗 Line following and obstacle avoidance robots.
• ⚙️ Precision gear and motion systems.

• 🔧 DIY automation mechanisms.

• 📦 Compact mechanical designs.

• 🎓 Arduino & STEM education projects.


Note:

• Product appearance may vary slightly from the images shown.

• Text or markings on the motor may differ depending on the batch.
