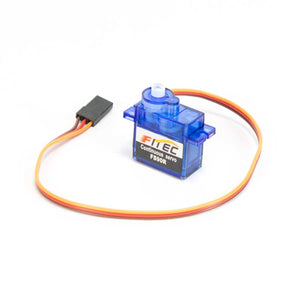

Continuous Rotation Servo - FS90R 9g Micro 360 Degrees
This is a 360 degree continuous rotation servo.
1 | Size | A:23.2mm B:12.5mm C:22mm | |
2 | Weight | 9g ±0.2 | |
3 | Gear type | Plastic Gear(Nylon & POM ) | |
4 | Limit angle | NO limit | |
5 | Bearing | NO Ball bearings | |
6 | Horn gear spline | 20T(4.8mm) | |
7 | Horn type | Plastic,POM | |
8 | Case | Nylon & Fiberglass | |
9 | Connector wire | 240mm ±5 mm + 3pin JR Male connector | |
10 | Motor | Metal brush motor | |
11 | Splash water resistance | NO |
