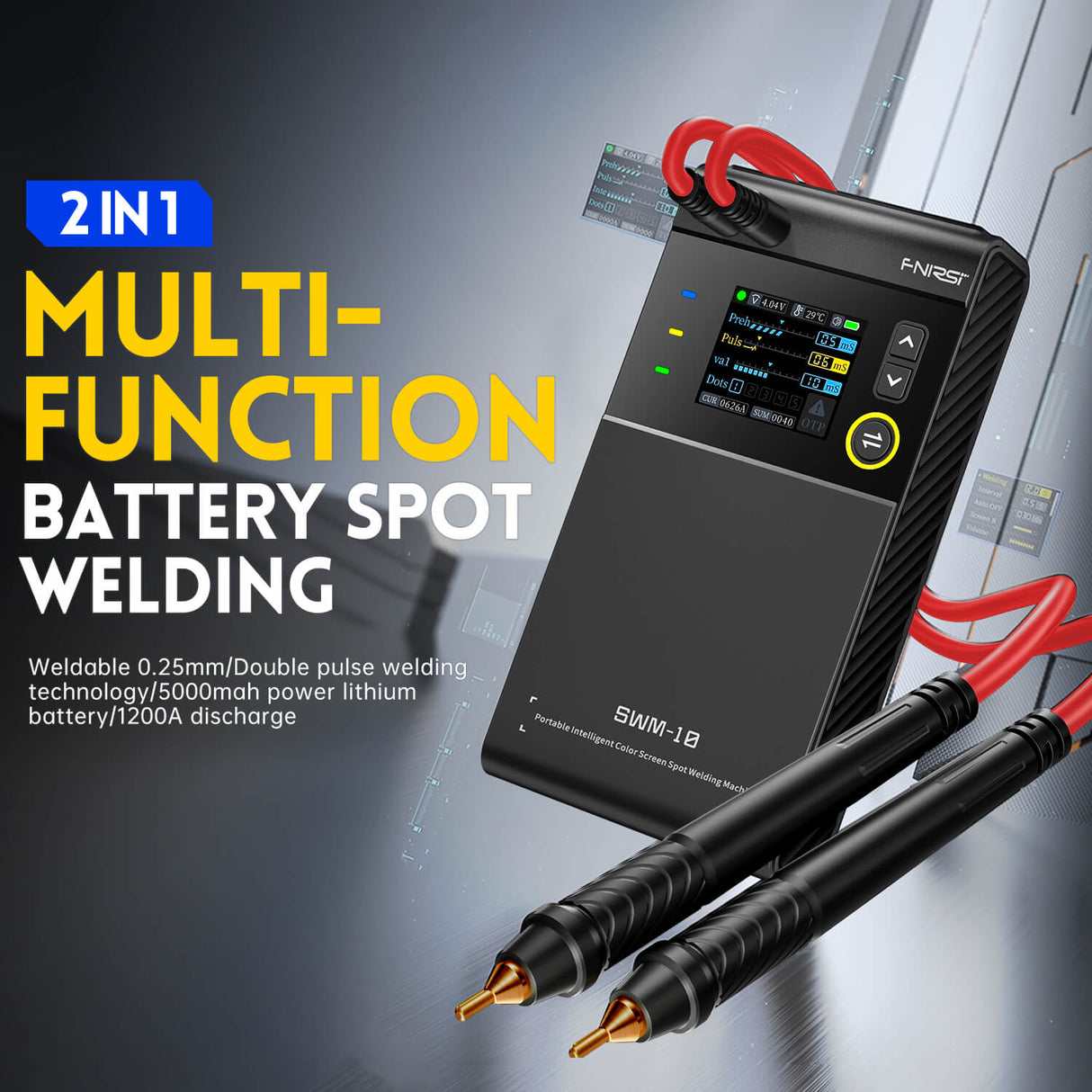

FNIRSI SWM-10 Portable Intelligent Color Screen Spot Welding Machine

The FNIRSI SWM-10 is a compact and versatile handheld spot welding machine that combines reliable welding performance with the convenience of a built in power bank. Designed for battery tab welding, metal sheet joins, and precision spot welds, it’s ideal for electronics workshops, battery pack assembly, and field service work.

Thanks to double pulse welding technology and intelligent temperature control, the SWM-10 delivers stable and consistent welding results. Its 1.8″ color LCD display keeps you informed of status and settings, while the integrated 5000mAh lithium battery ensures long usage without constant recharging. The device’s flexible settings and multiple safety protections make it both powerful and user friendly.

Highlights:

• Portable intelligent spot welding machine with clear LCD display.

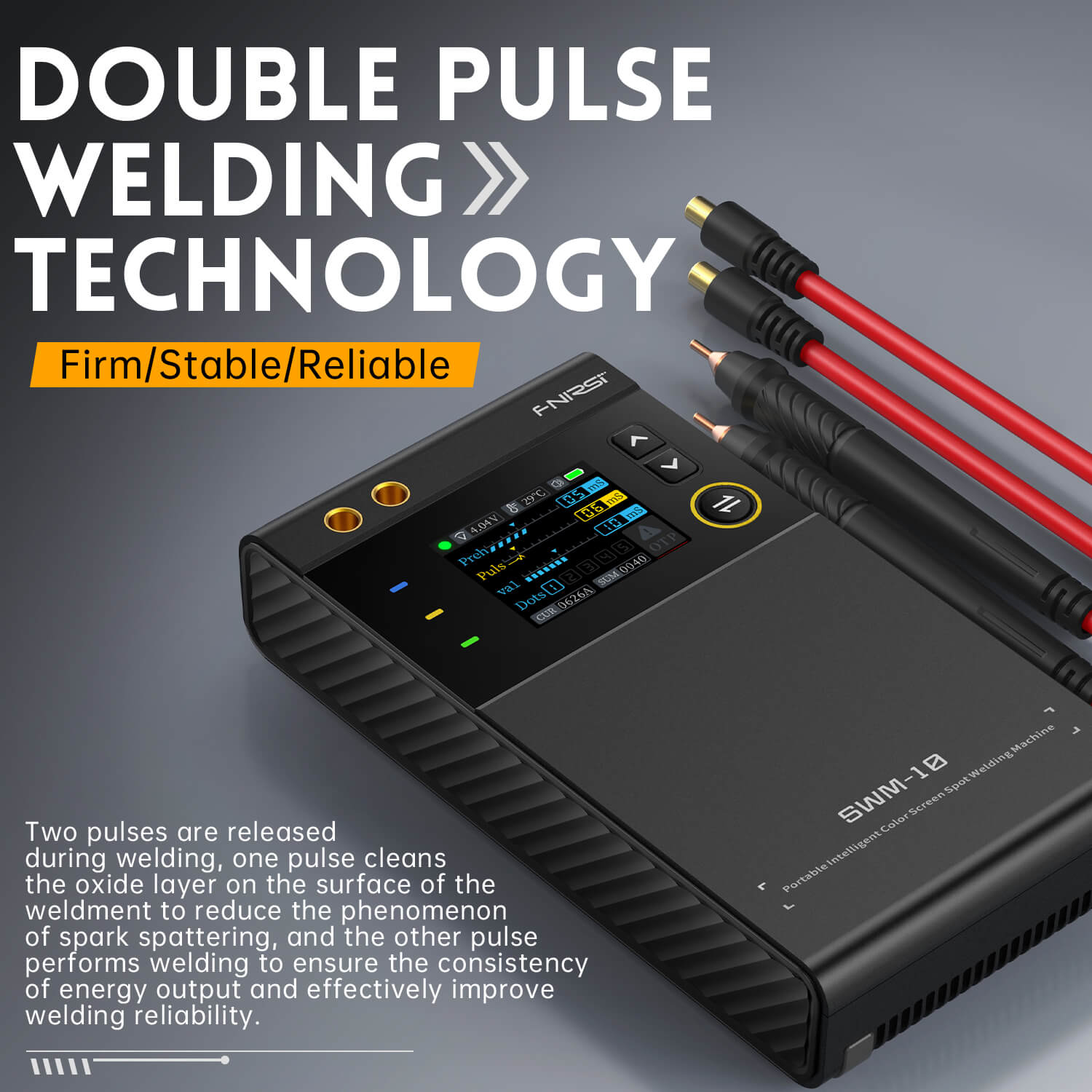

• Double pulse technology for firm, stable welds.

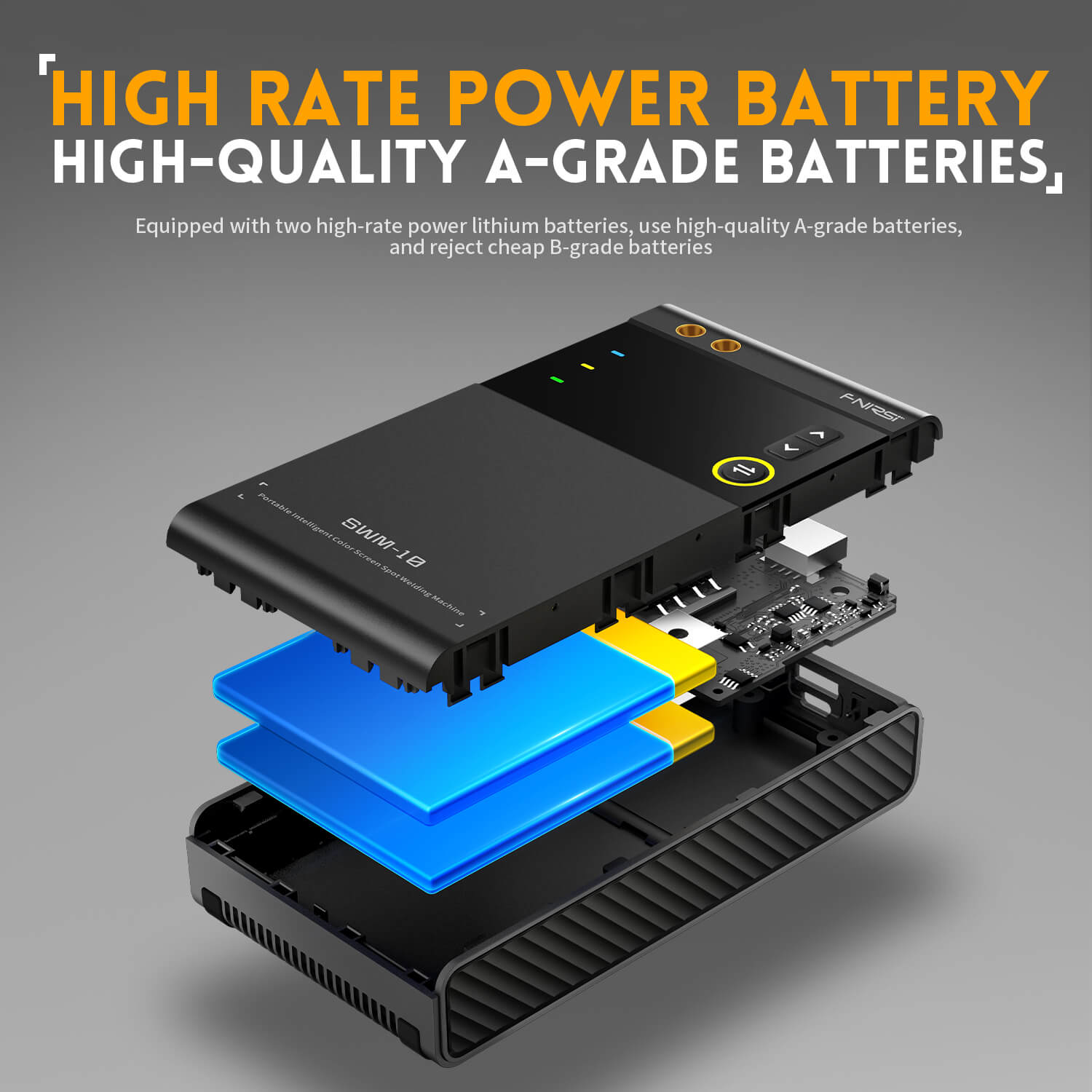

• Built in 5000mAh battery with long runtime.

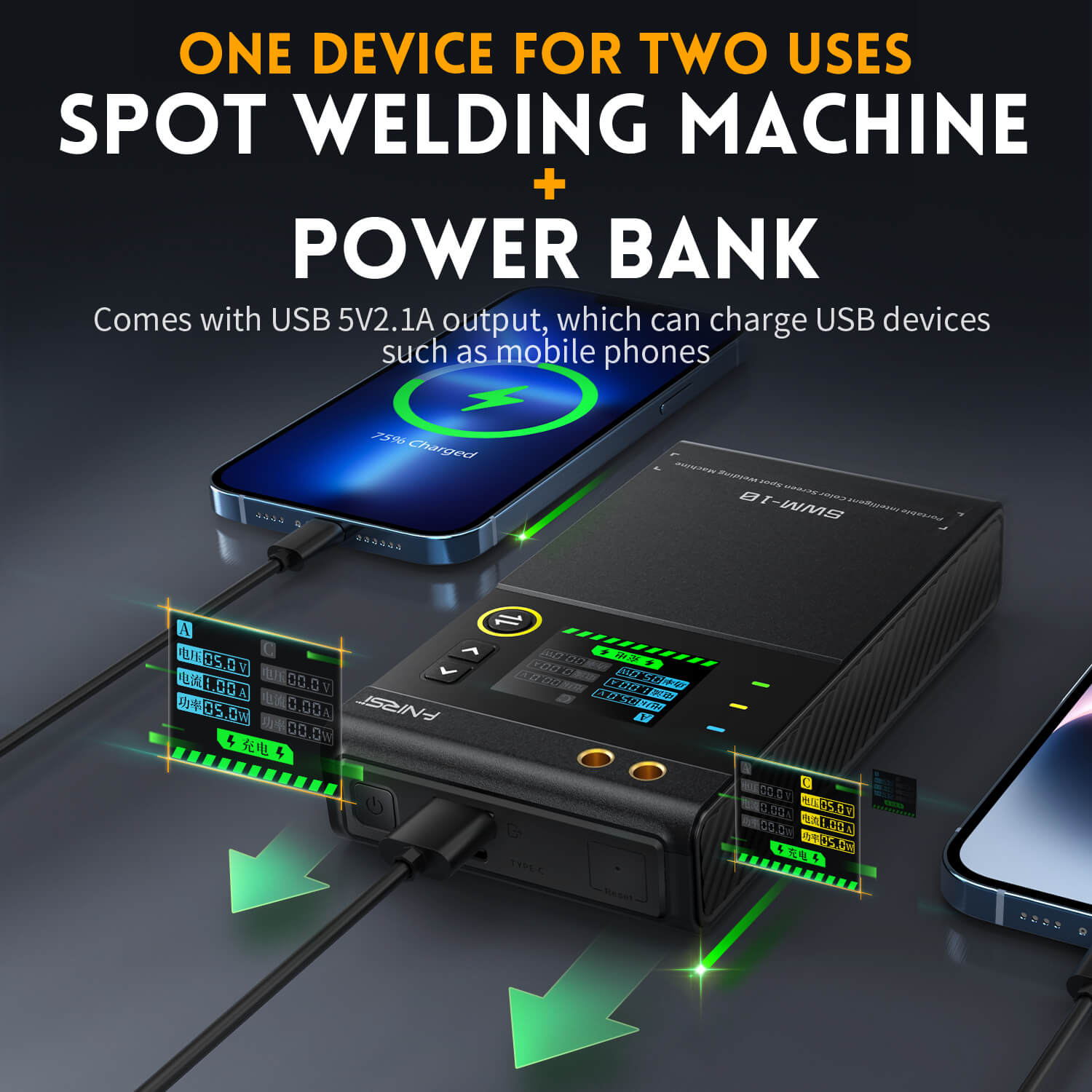

• Functions as a power bank with USB output.
• Intelligent temperature control with protection features.
• Customizable welding settings (preheat, pulse, interval).

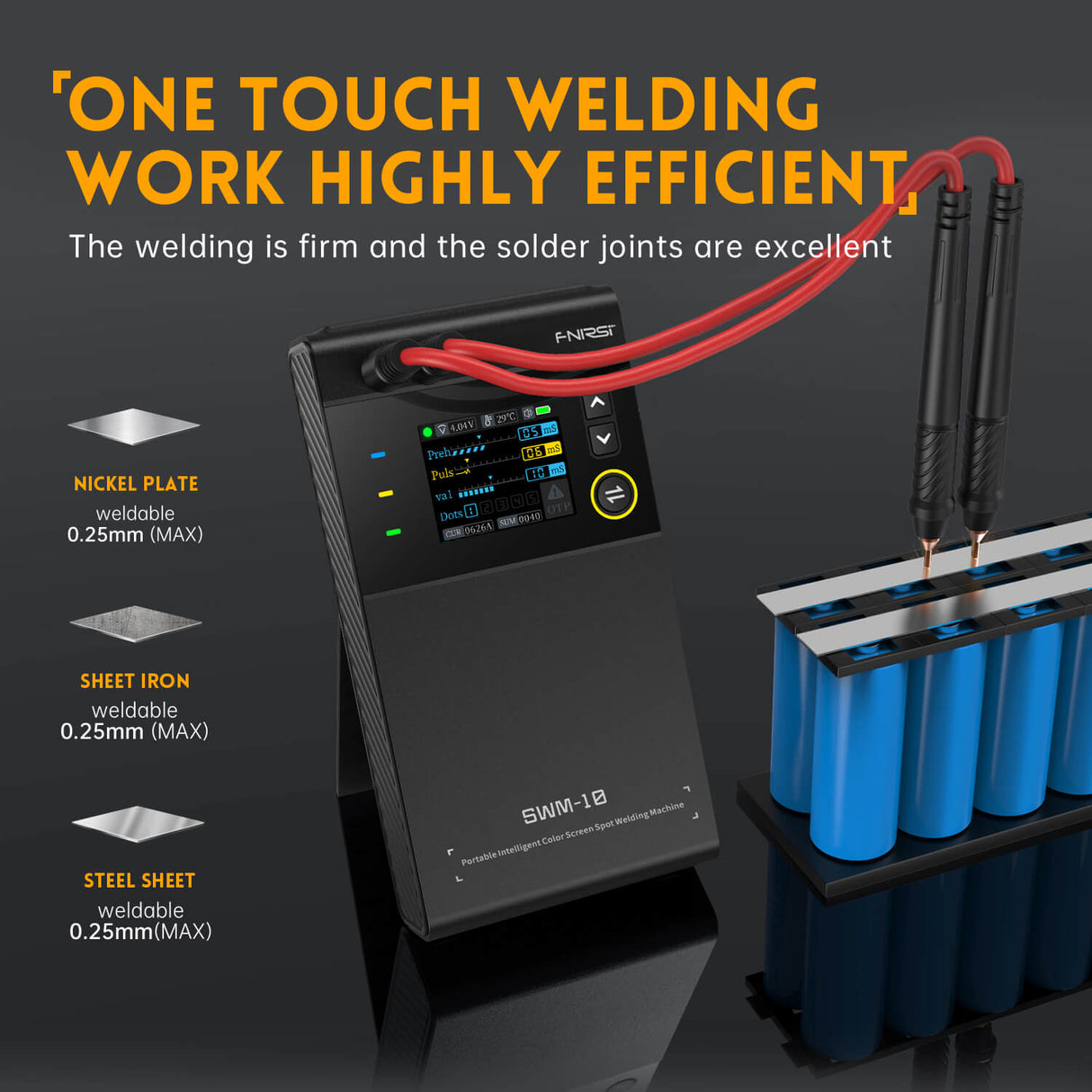

• Can weld nickel, iron, stainless steel, aluminium and similar materials.
• 4 gear welding current adjustment for versatile use.

Specifications:

General

• Model: FNIRSI SWM-10.
• Battery Capacity: 5000mAh.
• Charging Input: 5V / 2.1A.
• USB Output: 5V / 2.1A (power bank).
• Display: 1.8″ color LCD.
• Protection: Over temperature, low supply, short circuit.
• Adjustable Gear Levels: 4 combination gears.
• Dimensions: ~155×82×28mm.
• Weight: ~500g

Welding Performance

• Max Welding Current: ~1200A.
• Welding Thickness: 0.1-0.25mm.
• Suitable Materials: Nickel sheet, iron sheet, stainless steel, aluminium.

Ideal For:

• 🔋 Precision spot welding in battery pack assembly.
• ⚡ Welding metal tabs (nickel, steel, aluminium).
• 🛠 Electronics repair shops and DIY makers.
• 🔧 Field work & portable welding needs.
• 📦 Workshop use and solderless joins.
• ⚙️ Projects requiring a spot welding tool & power bank.
