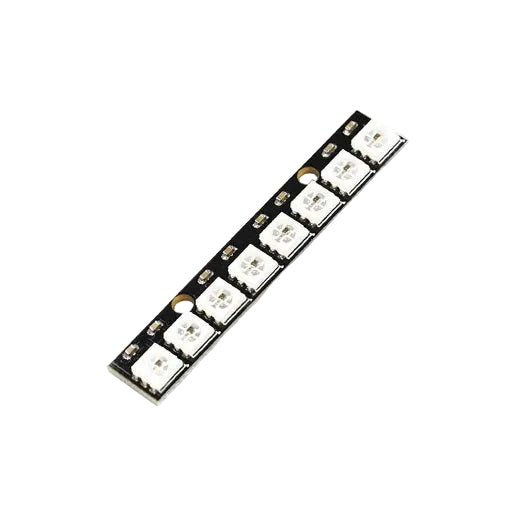

8-Bit WS2812 5050 RGB LED Line Module

The 8-Bit WS2812 5050 RGB LED Line Module is a compact and versatile solution for adding colorful and programmable lighting effects to your electronics projects.

This module features 8 individually addressable WS2812 RGB LEDs arranged in a straight line, allowing each LED to display a different color and brightness. With red, green and blue integrated into each 5050 LED, it can produce a wide range of colors and dynamic visual effects.

Designed for easy integration, the module uses a simple digital data connection and can be controlled with Arduino and other compatible microcontrollers. Multiple WS2812 modules can also be connected together for larger lighting projects.

Perfect for makers, students, robotics enthusiasts and STEM labs where programmable lighting, visual feedback and creative effects are essential.

Highlights:

• 8 Addressable LEDs: Features 8 individually controllable WS2812 RGB LEDs.
• Full RGB Colors: Each LED combines red, green and blue for a wide range of colors.
• Individual Control: Set the color and brightness of each LED independently.
• Easy to Use: Controlled through a simple digital data signal.
• Expandable: Multiple modules can be connected together for larger lighting setups.
• Versatile Use: Suitable for indicators, animations, decorative lighting and interactive projects.

Specifications:

• Operating Voltage: 5V DC.
• LED Type: WS2812 5050 RGB.
• Number of LEDs: 8.
• LED Arrangement: Straight line.
• Control Type: Individually addressable.
• Color: Full color RGB.
• PCB Color: Black.
• Application: Programmable lighting, indicators, animations and visual effects.
• Dimensions: ~57×10×3mm.

• Interface: 8-pin (GND, IN, VCC, GND, GND, OUT, VCC, GND).

Ideal For:

• 🌈 Creating colorful RGB lighting effects.
• ⚡ Programmable LED animations and patterns.
• 🤖 Robotics and microcontroller projects.
• 🧰 DIY electronics and interactive builds.
• 💡 Visual indicators and decorative lighting.
• 🎓 Arduino & STEM education projects.

Note:

• Each WS2812 LED can be individually controlled for color and brightness.
• The module requires a suitable 5V power supply, especially when operating multiple LEDs at high brightness.
• Multiple compatible WS2812 modules can be daisy chained using the data output and input connections.
• Product appearance may vary slightly from the images shown.
• Text, markings, or PCB details may differ depending on the batch.
