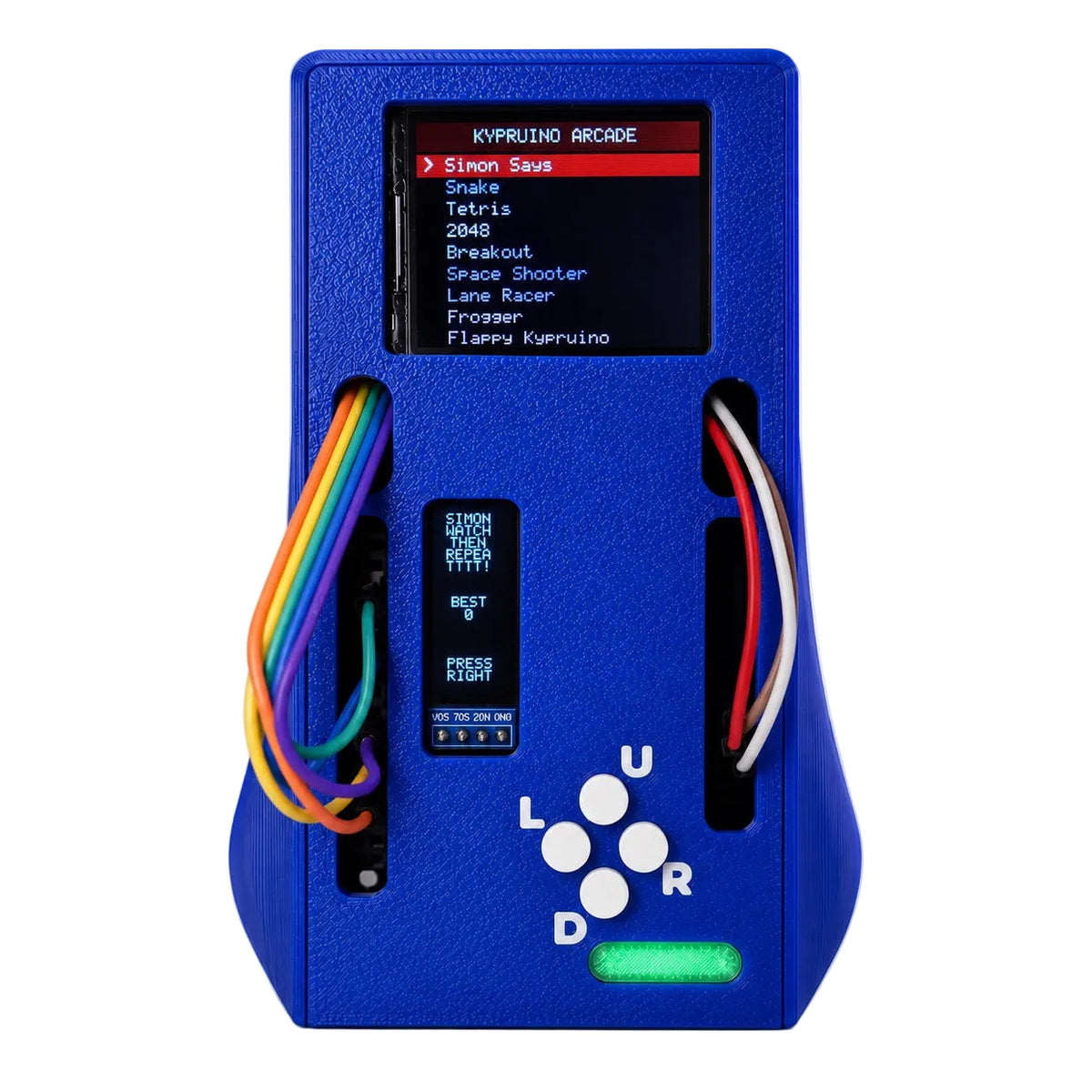

Pocket Arcade Machine with 12 Classic Games

The Pocket Arcade Machine is a fun and interactive STEM project that combines retro gaming, dual display graphics, programming and 3D printing into one compact handheld gaming console.

Using a Kypruino board, a 1.8" TFT color display and a 0.91" OLED display, the arcade features 12 playable games, including Tetris, Snake, 2048, Breakout and Space Shooter. The main display shows the gameplay, while the secondary OLED screen displays live scores, remaining lives and game information.

Designed for beginners and experienced makers alike, this project introduces game development, display integration and interactive electronics through a fun and practical STEM build.

Perfect for makers, students, classrooms, workshops and STEM education.

Highlights:

• 12 Playable Games: Includes classic arcade games, puzzles, racing and a virtual pet.
• Dual Display System: Color LCD for gameplay and OLED for live scores and game information.
• Interactive Controls: Four onboard buttons work as a directional game controller.
• Sound & Lighting Effects: Built in buzzer and NeoPixel LEDs react to gameplay.
• STEM Learning Project: Combines coding, electronics, game development and 3D printing.

Specifications:

• Project Type: Retro Gaming STEM Project & 3D Printing Design.
• Main Board: Kypruino Compatible Board.
• Main Display: 1.8" TFT LCD Display (ST7735 128×160).
• Secondary Display: 0.91" I2C OLED Display (SSD1306 128×32).
• Communication Interface: SPI (LCD) / I2C (OLED).
• Controls: 4 Onboard Push Buttons (D-Pad).
• Sound: Onboard Buzzer.
• Lighting: 3 Onboard NeoPixel RGB LEDs.
• Games: 12 Playable Games.
• Power Supply: USB Type C.

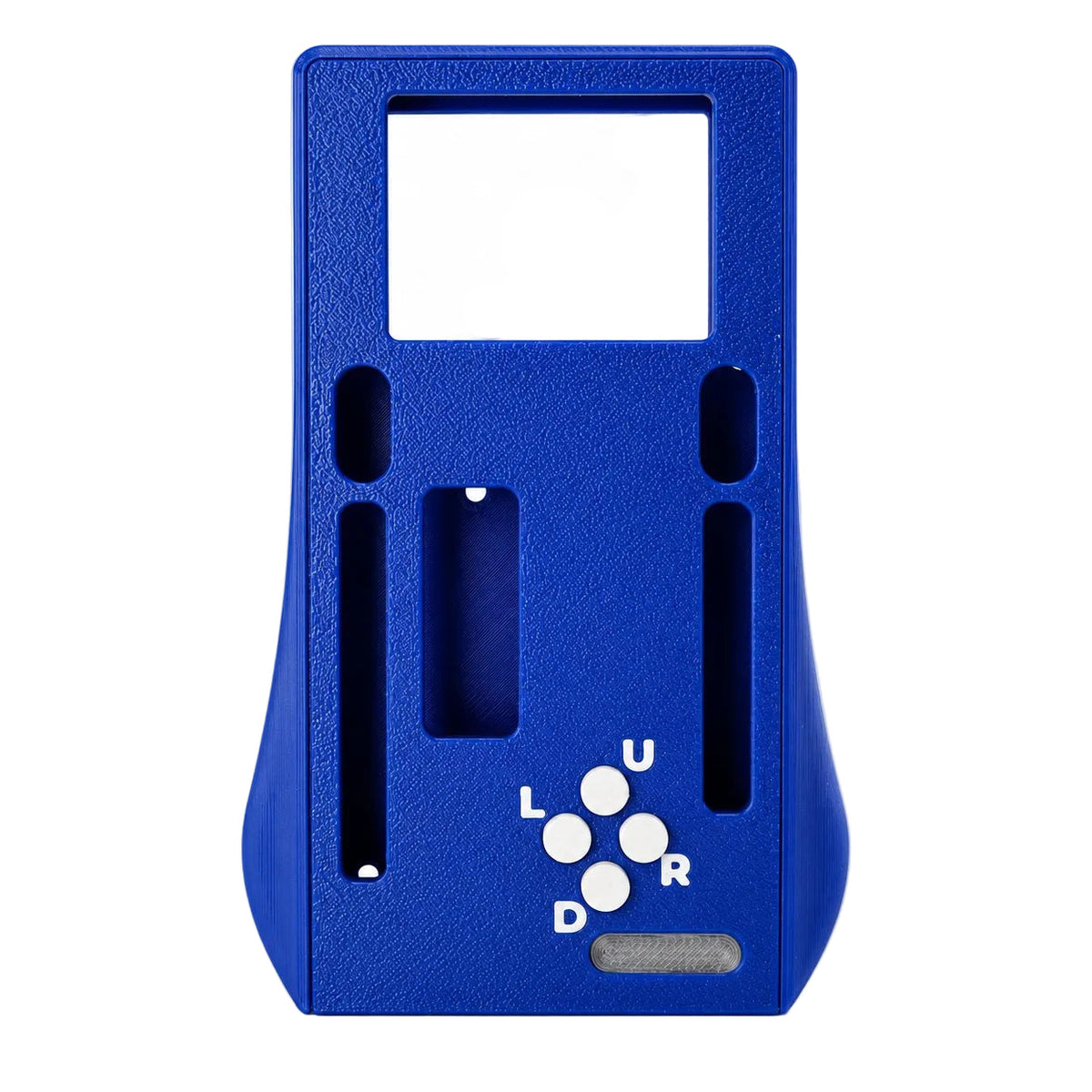

• Shell Type: 3D Printed Handheld Arcade Shell.
• Features: Dual displays, saved high scores, sound effects, reactive lighting, pause function, sound control and animated attract mode.
• Application: STEM education, coding, electronics, retro gaming, game development and 3D printing.
• Arcade Machine Dimensions: ~123×77×24mm.
• Kit Weight: ~90g.

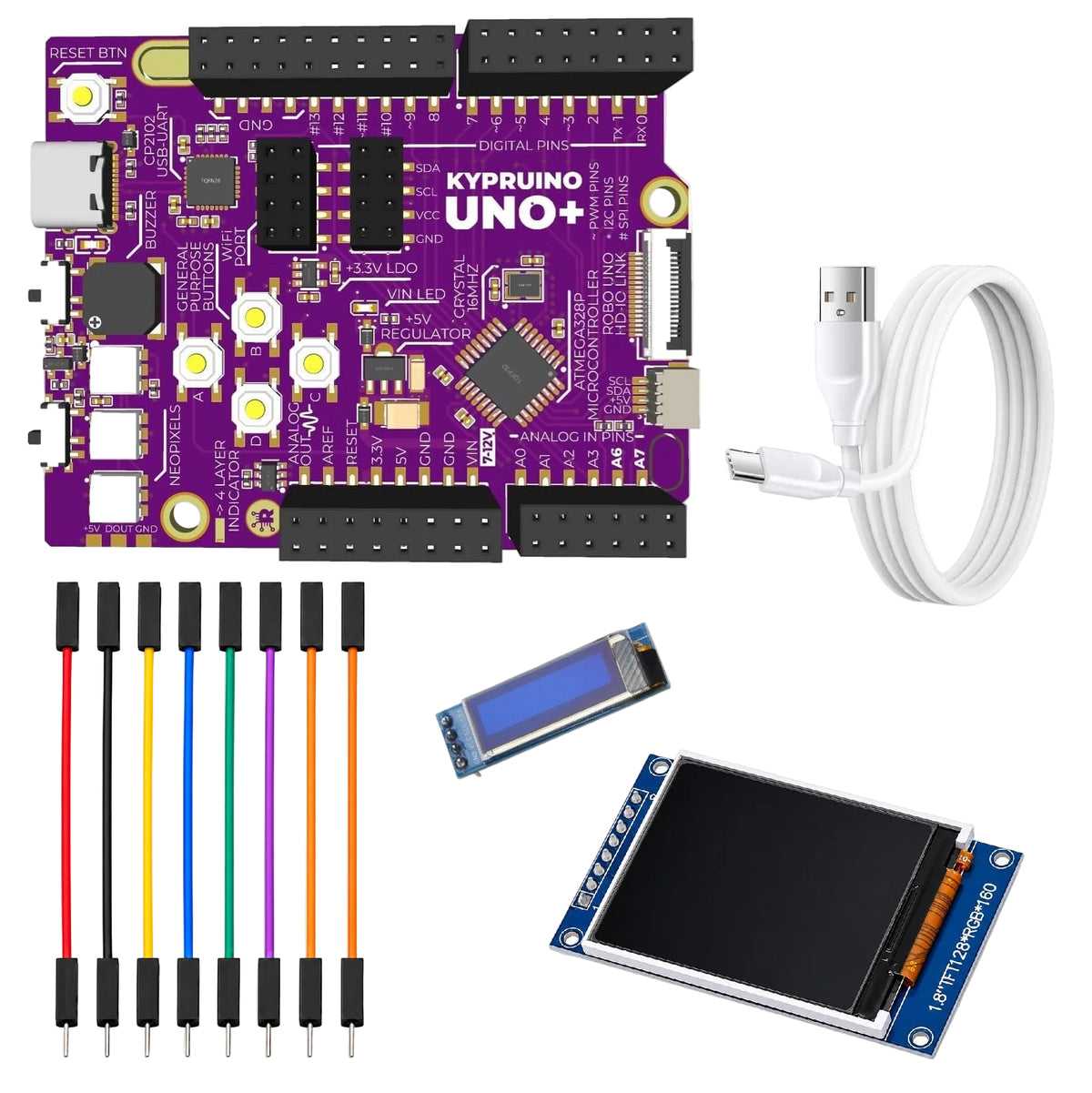

Complete Kit Includes:

• 1x Kypruino Compatible Board.
• 1x 1.8" TFT LCD Display 128x160 RGB.
• 1x 0.91" OLED Display 128x32 I2C.
• 8x Male to Female Dupont Wires 20cm.
• 1x USB Type C Cable.
• 1x 3D Printed Arcade Shell.

Project Resources:

• Source Code & 3D Printing Files.
• Step by Step Project Guide.

Ideal For:

• 🕹️ Retro arcade and handheld gaming projects.
• 🎮 Game development and interactive programming.
• 📟 LCD and OLED display integration.
• 🤖 Microcontroller and electronics projects.
• 🎓 Arduino & STEM education projects.

Note:

• Arcade shell color may vary slightly from the images shown.
• Requires basic assembly and Arduino IDE programming.
• USB Type C cable is required for programming and power.
• The code can be customized to modify games, graphics, sounds and difficulty settings.
• Full project instructions, wiring diagram, source code and 3D printing files are available in our Blog.
• Product appearance and 3D printed part colors may vary slightly from the images shown.
