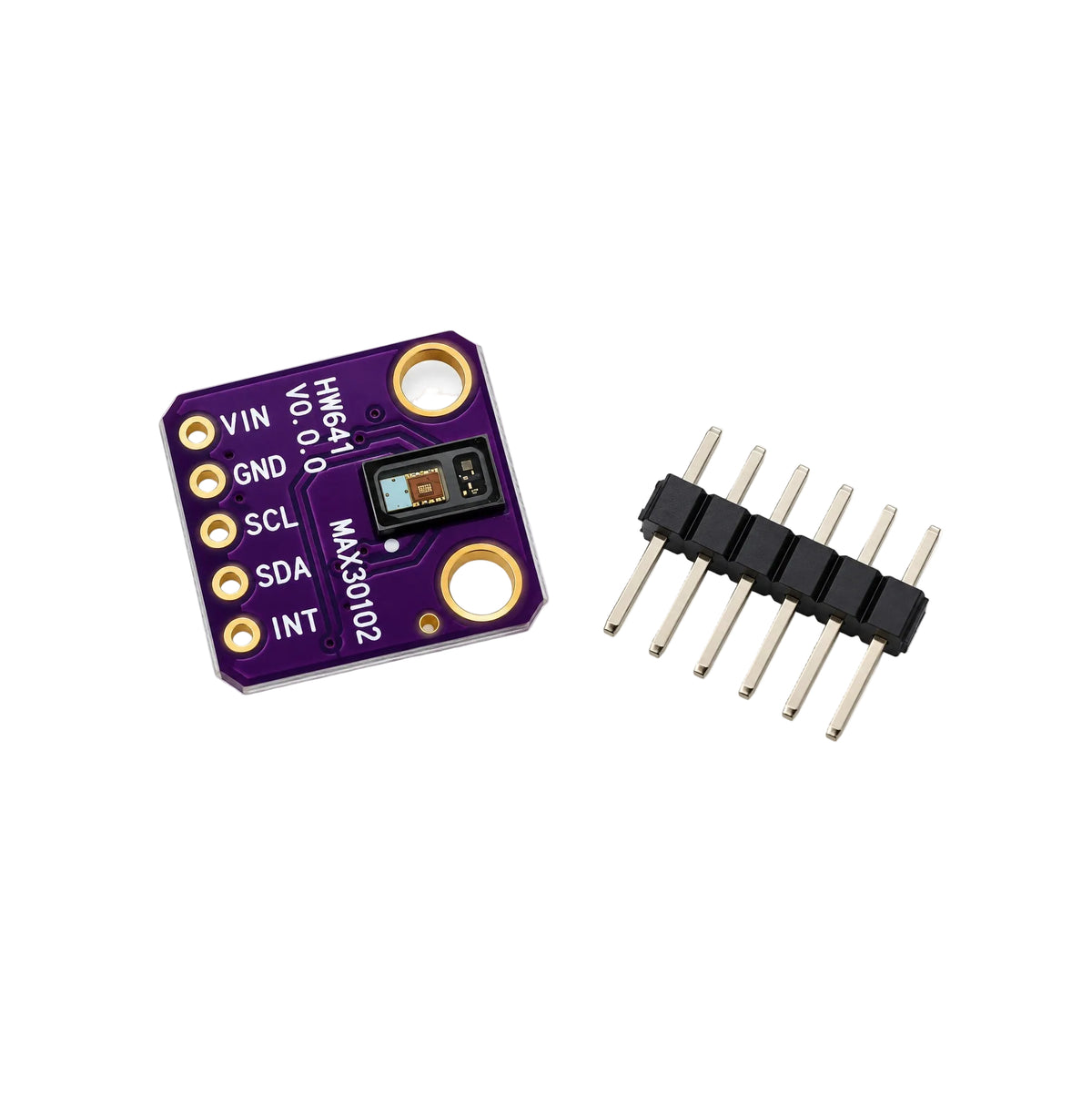

MAX30102 Heart Rate & Blood Oxygen Sensor

The MAX30102 Heart Rate & Blood Oxygen Sensor is a compact optical sensor designed for measuring heart rate and blood oxygen related signals, making it a useful addition to wearable electronics, monitoring projects and educational applications.

The sensor combines red and infrared LEDs with a photodetector to detect changes in light absorption caused by blood flow, allowing compatible microcontrollers to process pulse and oxygen saturation related data.

Using an I2C interface with an additional interrupt pin, the MAX30102 can be easily integrated with Arduino and other compatible microcontrollers for real time sensor monitoring.

Perfect for makers, students and STEM labs where biometric sensing, wearable electronics and physiological signal experiments are required.

Highlights:

• Heart Rate Sensing: Designed for optical pulse detection.
• Blood Oxygen Sensing: Supports SpO₂ related measurement applications.
• Optical Detection: Uses red and infrared LEDs with a photodetector.
• I2C Communication: Simple digital interface for microcontroller integration.
• Compact Module: Small size suitable for wearable and embedded projects.
• Please note: The pins come unsoldered and require soldering before use.

Specifications:

• Operating Voltage: 3.3V.
• Sensor: MAX30102.
• Type: Optical heart rate and blood oxygen sensor.
• Light Sources: Red LED, Infrared LED.
• Detection: Integrated photodetector.
• Interface: I2C & INT.
• PCB Color: Purple.
• Application: Heart rate, pulse and blood oxygen related sensing.
• Dimensions: ~15×14×3mm.

• Interface: 5-pin (VIN, GND, SCL, SDA, INT).

Ideal For:

• ❤️ Heart rate monitoring projects.
• 🩸 Blood oxygen sensing experiments.
• 🤖 Microcontroller and wearable electronics projects.
• 🧰 Biometric sensing and prototyping.
• 🎓 Arduino & STEM education projects.

Note:

• This product is the MAX30102 version.
• This module is intended for electronics development, experimentation and educational purposes.
• It is not a certified medical device and should not be used for medical diagnosis or treatment.
• Correct sensor placement and software processing are required for reliable readings.
• Product appearance may vary slightly from the images shown.
• Text or markings on the module may differ depending on the manufacturing batch.
