Interactive NFC Banking Terminal

The Interactive NFC Banking Terminal is a fun STEM project that combines RFID technology, OLED graphics, programming, EEPROM memory and 3D printing into one interactive banking simulation.

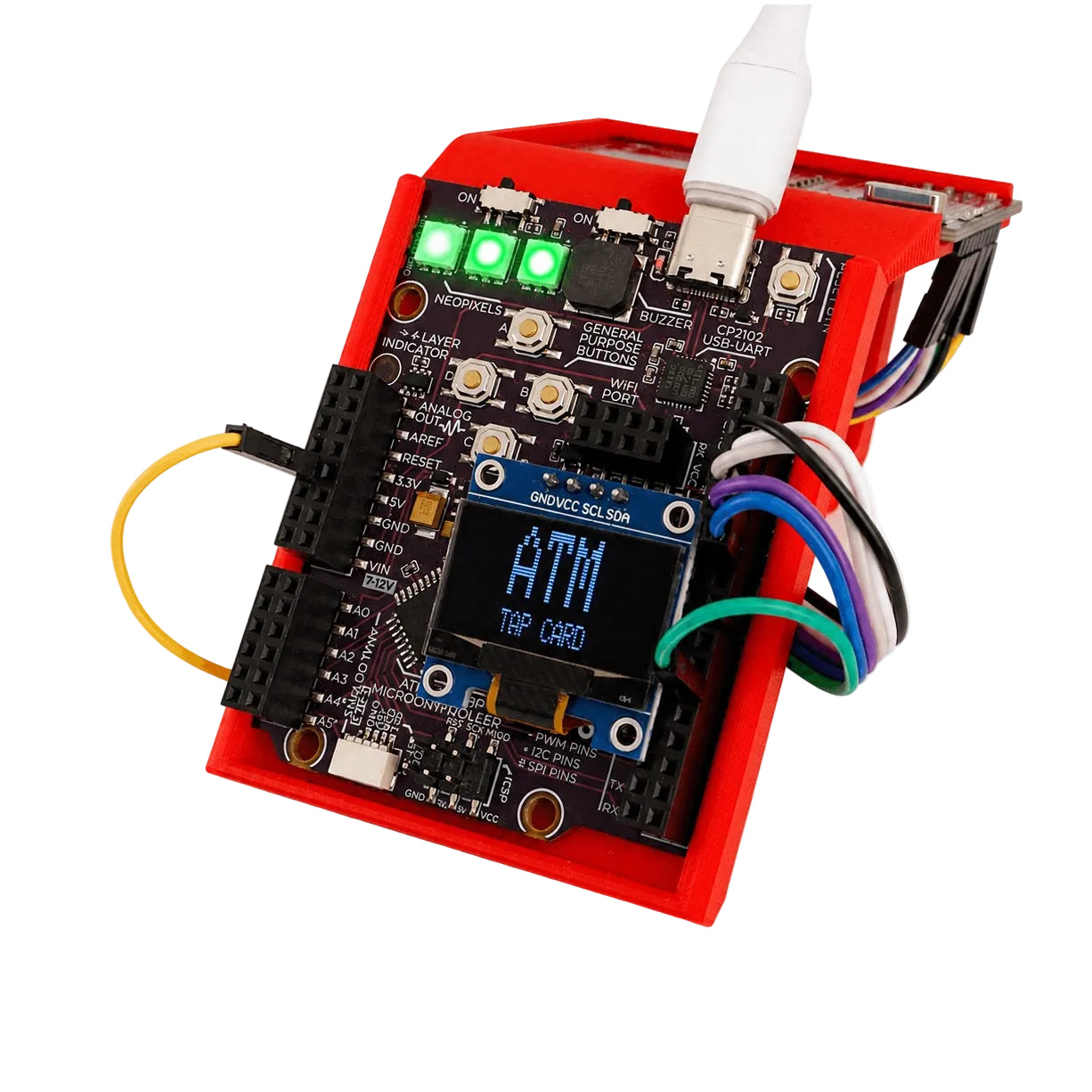

Using a Kypruino board, an RC522 RFID reader and a 0.96" OLED display, the terminal lets users scan RFID cards to access virtual accounts, deposit, withdraw and transfer virtual money between registered users. Built in buttons, NeoPixel LEDs and the onboard buzzer provide an intuitive and interactive user experience.

Designed for beginners and experienced makers alike, this project introduces RFID communication, EEPROM data storage, menu based interfaces and transaction logic through a fun and practical STEM build.

Perfect for makers, students, classrooms, workshops and STEM education.

Highlights:

• Interactive Banking Simulation: Create virtual accounts using RFID cards.
• RFID & NFC Technology: Learn card identification and account management.
• OLED User Interface: Displays account information, menus and balances.
• Built in User Feedback: Uses onboard buttons, NeoPixels and buzzer on the Kypruino board.
• STEM Learning Project: Combines coding, electronics, RFID and 3D printing.

Specifications:

• Project Type: RFID & NFC Banking Simulation STEM Project & 3D Printing Design.
• Main Board: Kypruino or Arduino Compatible Board.
• Display: 0.96" I2C OLED Display (SSD1306 128×64).
• RFID Reader: RC522 RFID or NFC Reader Module (13.56MHz).
• Built-in Features: 4x NeoPixel LEDs, buzzer and 4 push buttons (onboard on Kypruino).
• Communication Interface: SPI (RC522) and I2C (OLED).
• EEPROM Storage: Stores RFID card accounts and balances after power loss.
• Power Supply: USB Type C.

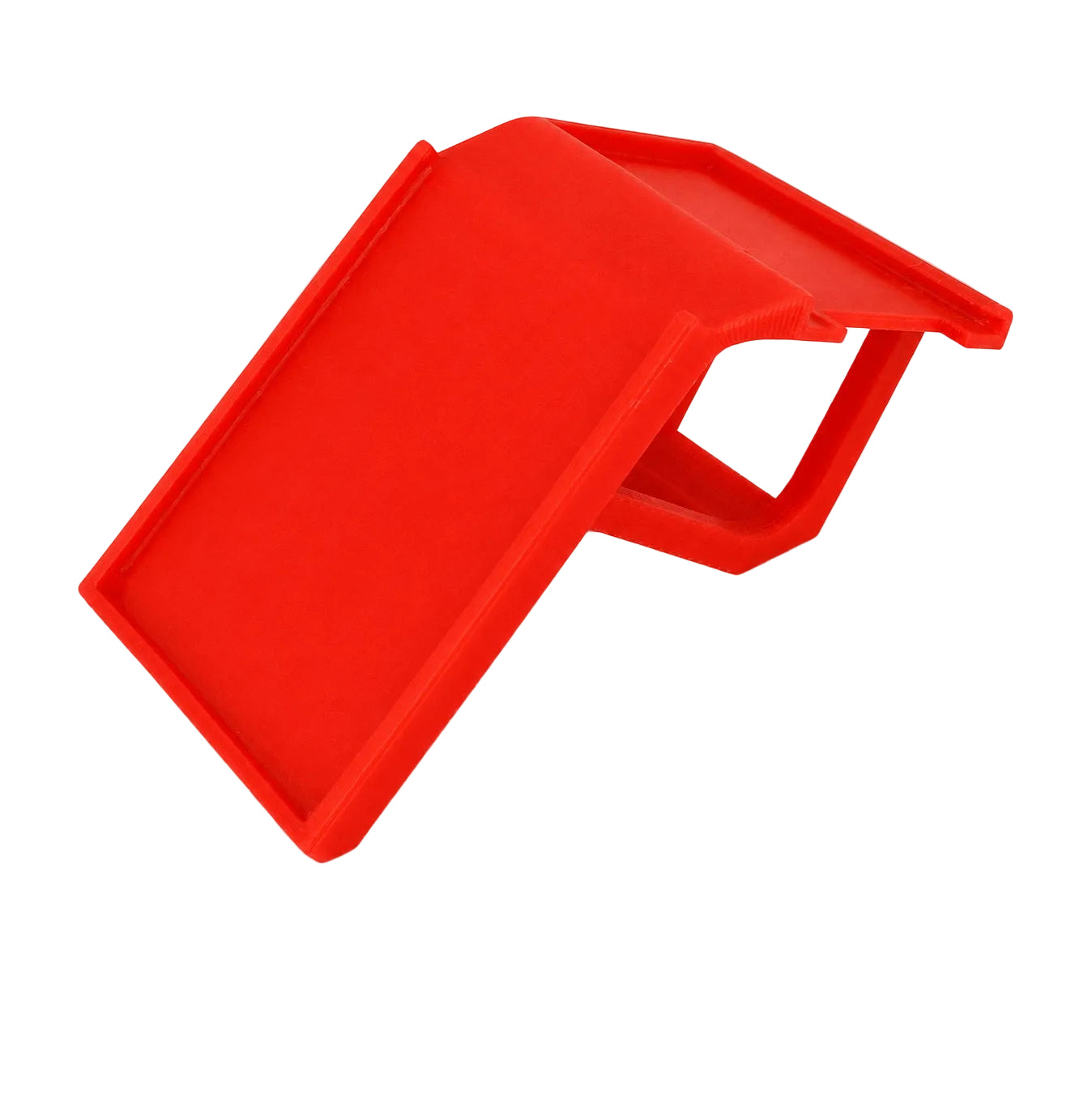

• Shell Type: 3D Printed PETG Banking Terminal Shell.
• Features: RFID account registration, virtual deposits, withdrawals, money transfers, EEPROM storage, OLED menu interface, RGB LED feedback and buzzer notifications.
• Application: STEM education, coding, electronics, RFID, NFC, EEPROM, embedded systems and 3D printing.
• Banking Terminal Dimensions: ~47×109×85mm.
• Kit Weight: ~70g.

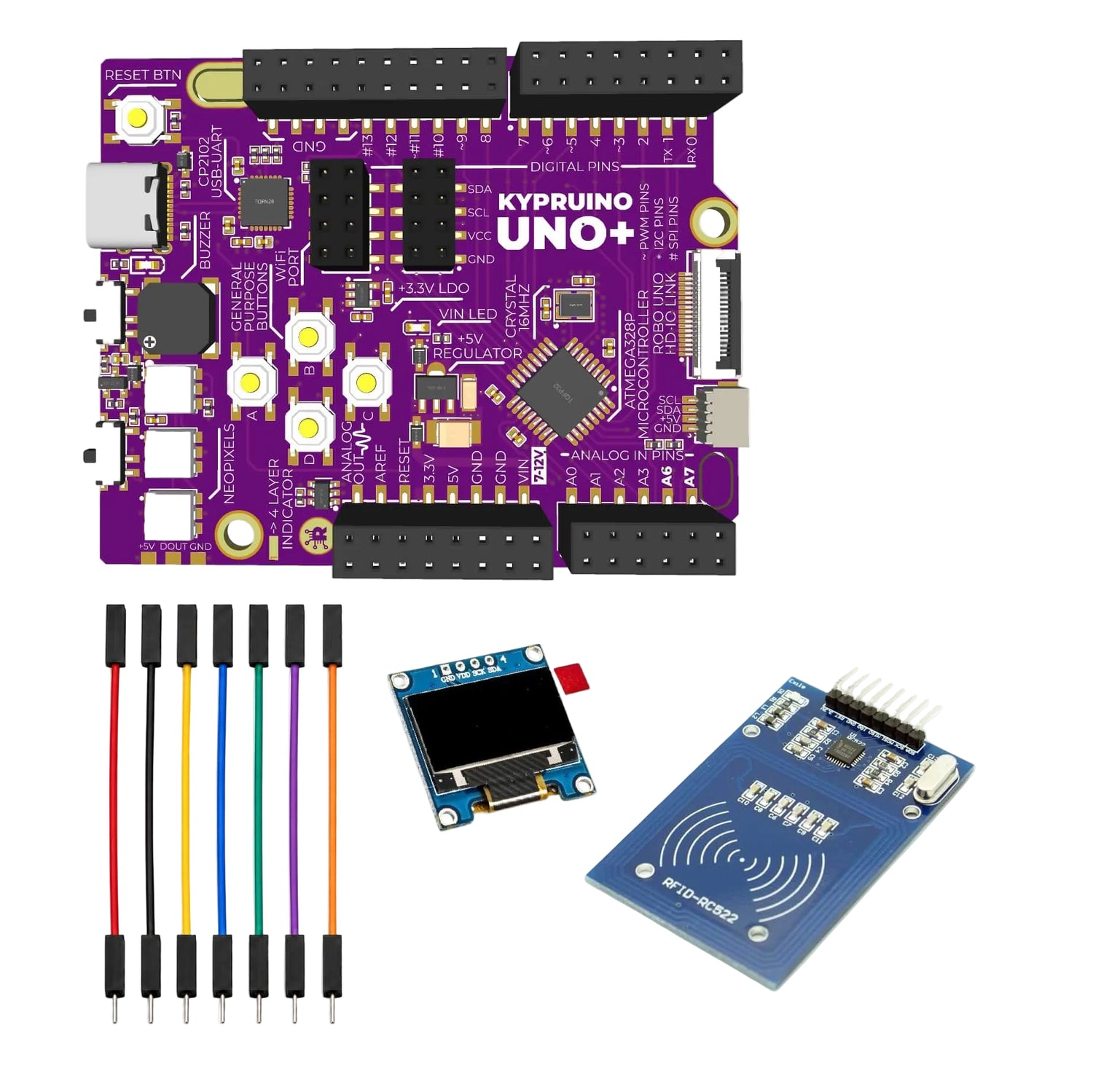

Complete Kit Includes:

• 1x Kypruino Compatible Board.
• 1x RFID Reader/Writer 13.56MHz I²C/SPI MF RC522.
• 1x 0.96" OLED Display 128x64 I2C White SSD1306.
• 7x Male to Female Dupont Wires.
• 1x 3D Printed Banking Terminal.

Ideal For:

• 💳 RFID and NFC learning projects.
• 💰 Banking and transaction simulation activities.
• 📟 OLED display and menu interface projects.
• 🤖 Embedded systems and EEPROM learning.
• 🎓 Arduino & STEM education projects.

Note:

• NFC cards are not included. View our NFC products and choose the one that suits your needs.
• Banking Terminal color may vary slightly from the images shown.
• Requires basic wiring and Arduino IDE programming.
• USB Type C cable is needed.
• The code can be customized for different account names, balances and transaction rules.
• This is an educational simulation and does not interact with real bank cards or payment systems.
• Full project instructions, wiring diagram, source code and 3D printing files are available on our Blog.
