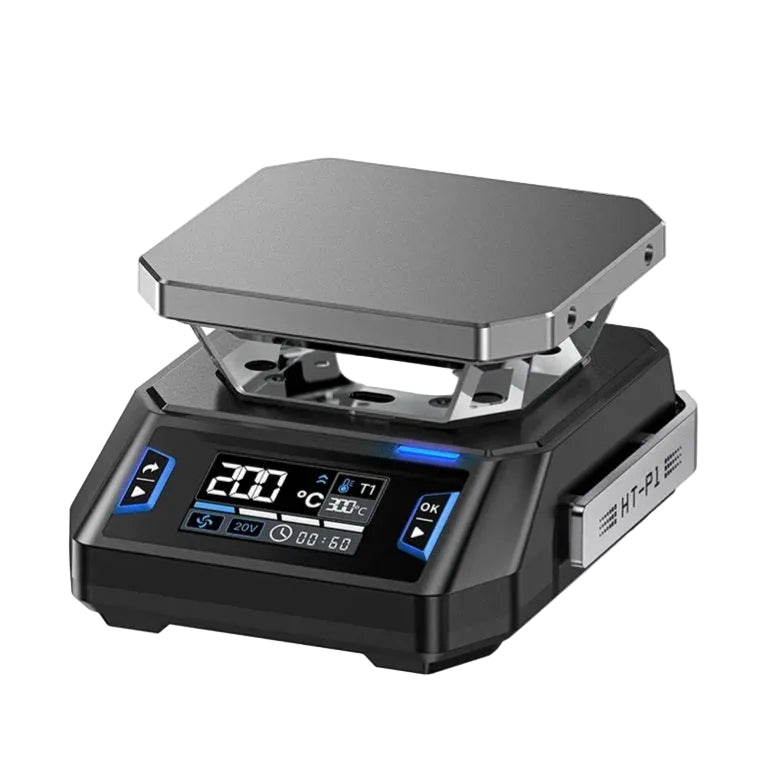

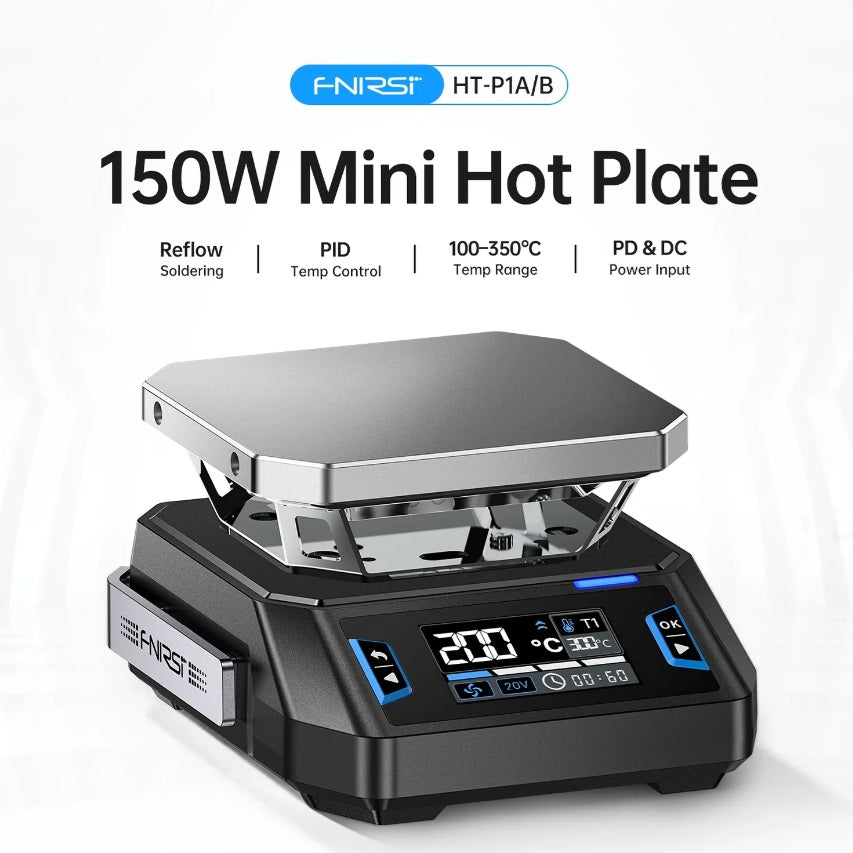

FNIRSI HT-P1B 150W Mini Hot Plate Reflow & Heating Station - Pro Set

The FNIRSI HT-P1B is a compact and powerful 150W mini hot plate designed for PCB rework, SMD soldering, component removal and controlled heating applications.

Featuring a 50×50mm heating area, adjustable power from 30W to 150W and precision PID temperature control, the HT-P1B provides a wide 100-350°C temperature range with ±3°C stability for reliable and consistent heating.

The station supports both DC 12-28V and USB-C PD power input, with the HT-P1B version supporting PD 2.0, PD 3.0 and PD 3.1. Its dual operating modes allow constant temperature heating or simulated reflow soldering with multi stage thermal profiles.

A 1.44" full color display provides real time monitoring of temperature, target temperature, voltage, power, heating time and system status, while built in safety features include tilt detection, over temperature protection and low voltage protection.

Perfect for electronics technicians, repair professionals and makers who need a compact, portable and precise heating solution for PCB assembly and rework.

Highlights:

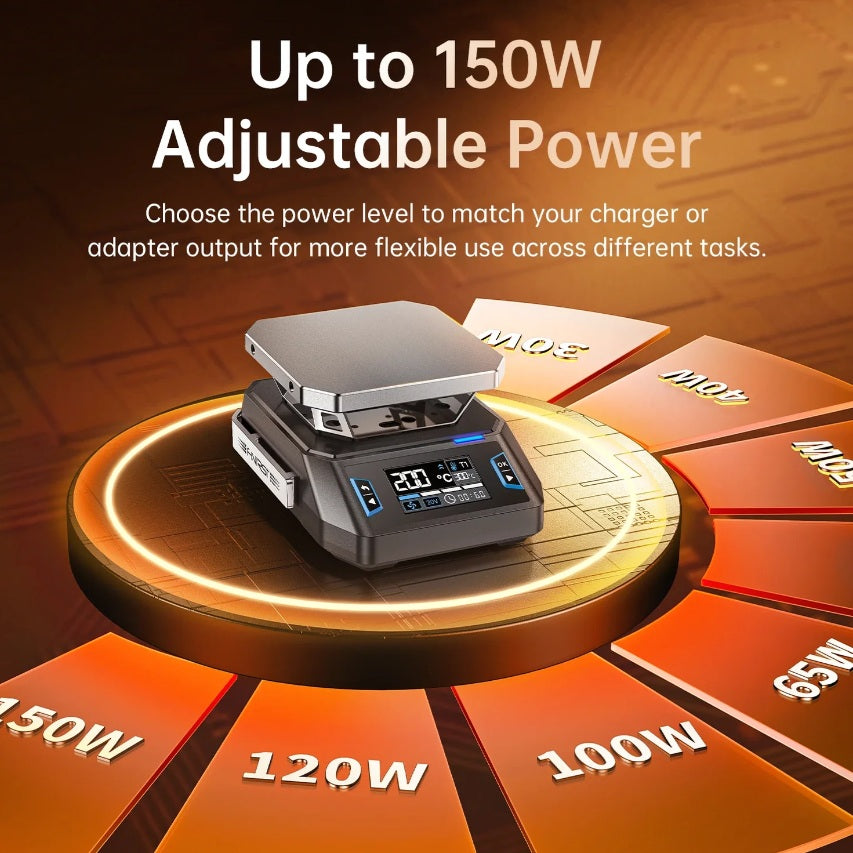

• 150W High Power: Adjustable 30-150W output for fast and efficient heating.
• 100-350°C Temperature Range: Wide adjustable range for different soldering and heating applications.
• PID Temperature Control: Maintains stable temperature with ±3°C stability.

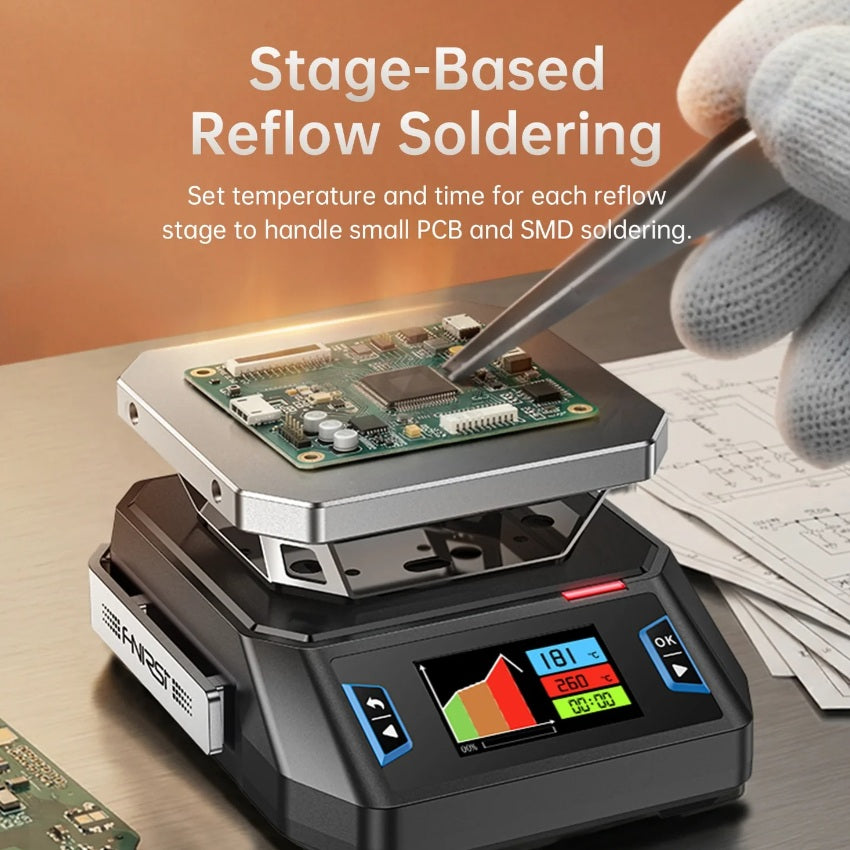

• Dual Heating Modes: Supports constant temperature heating and simulated reflow soldering.
• 50×50mm Heating Area: Compact surface suitable for small PCBs and SMD components.

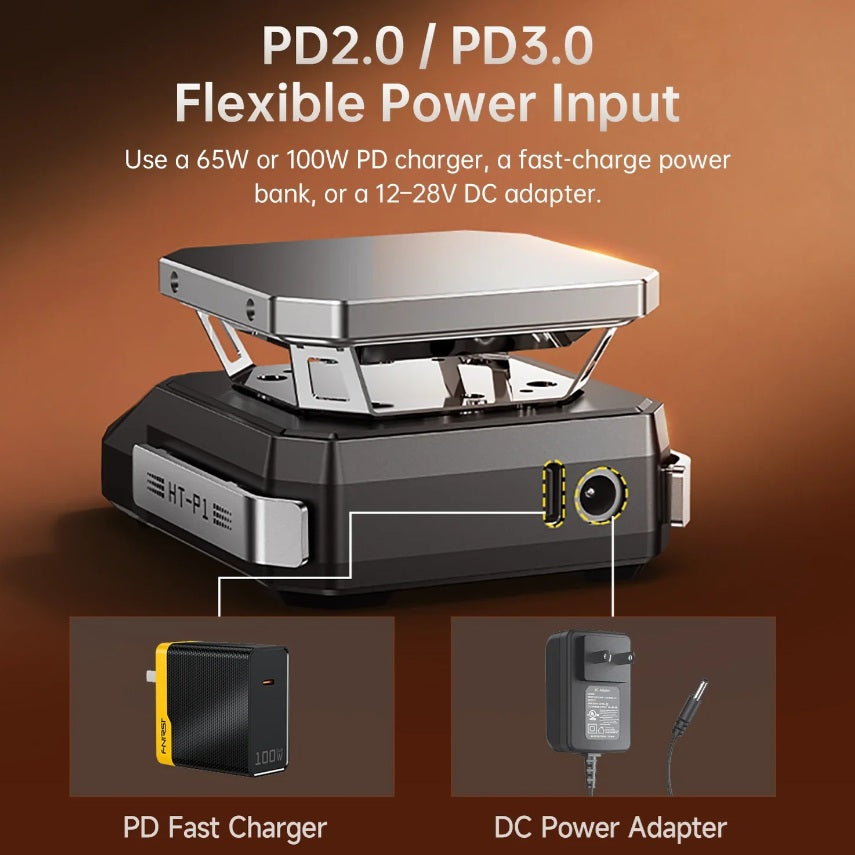

• Dual Power Input: Supports DC 12-28V and USB-C Power Delivery.
• PD 3.1 Support: HT-P1B supports PD 2.0, PD 3.0 and PD 3.1 protocols.
• 1.44" Color Display: Real time monitoring of temperature, voltage, power, heating time and operating status.
• Built in Protection: Includes tilt detection, over temperature, low voltage and long time protection.

Specifications:

• Model: FNIRSI HT-P1B.
• Type: Mini hot plate reflow heating station.
• Power Input: DC 12-28V or USB-C PD.
• Power Range: 30-150W.
• Standby Power: 1.6W.
• Temperature Range: 100-350°C.
• Temperature Stability: ±3°C.
• Heating Area: 50×50mm.
• Working Modes: Constant temperature heating, simulated reflow soldering.
• Temperature Presets: T1 / T2 / T3.
• Display: 1.44" color screen.
• USB-C Protocols: PD 2.0 / PD 3.0 / PD 3.1.
• Tilt Detection: Adjustable 20-50°.
• Application: PCB rework, SMD soldering, desoldering, component heating and reflow applications.
• Dimensions: ~69×82×46mm.
• Weight: ~165g.

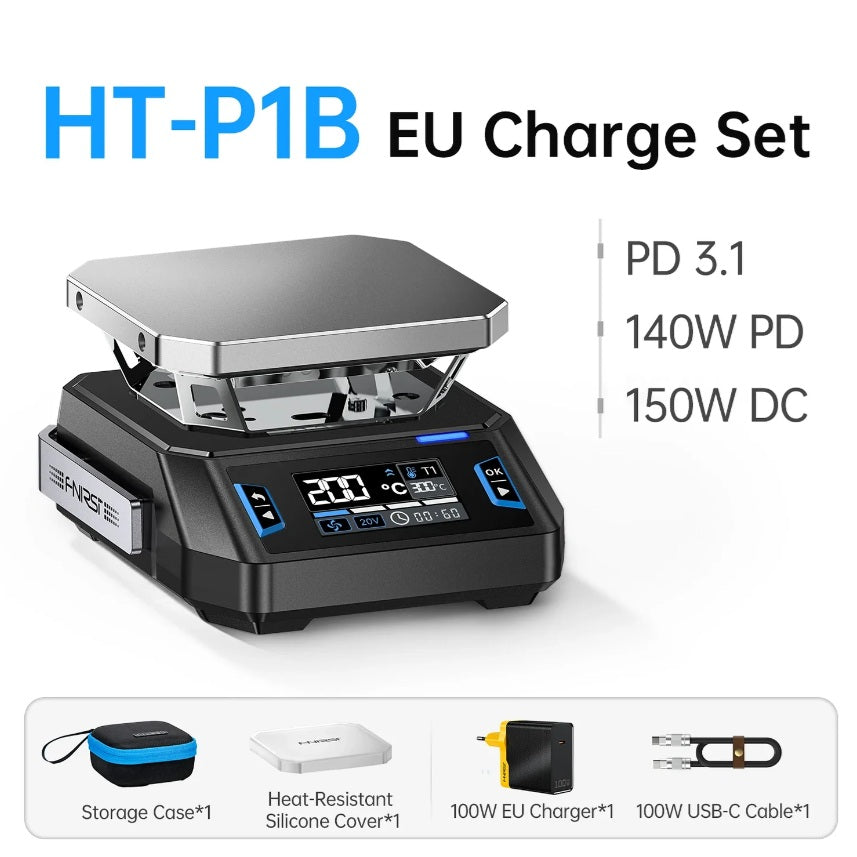

Package Includes:

• FNIRSI HT-P1B Mini Hot Plate.
• Heat resistant silicone transparent cover.
• 100W PD Power Adapter - EU Plug.
• 100W USB-C Cable.
• User manual.
• Storage case.

Ideal For:

• 🔧 PCB repair and rework.
• 🔥 SMD soldering and component removal.
• ⚡ Controlled component and PCB heating.
• 🧰 Electronics repair workbenches.
• 🎓 Advanced DIY electronics and prototyping.

Note:

• This product is the HT-P1B, Pro Set - EU Plug version.
• The HT-P1B supports PD 3.1, in addition to PD 2.0 and PD 3.0.
• The included Pro Set power adapter is rated at 100W. Reaching the device's maximum 150W power requires a suitable power source capable of providing the required output.
• USB-C and DC power inputs must not be used simultaneously.
• Product appearance or included accessories may vary slightly depending on the manufacturing batch.
