FNIRSI DLA-16 Plus 16 Channel 1GHz Logic Analyzer - USB 3.0

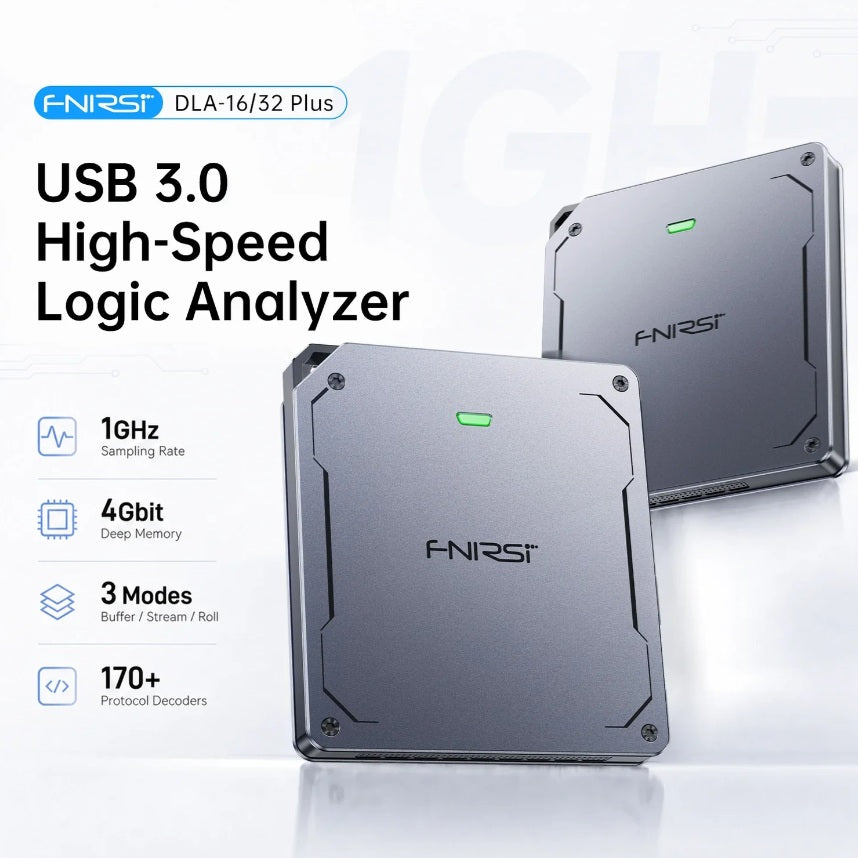

The FNIRSI DLA-16 Plus is a high performance 16 channel logic analyzer designed for digital signal capture, timing analysis, protocol decoding and advanced electronics debugging.

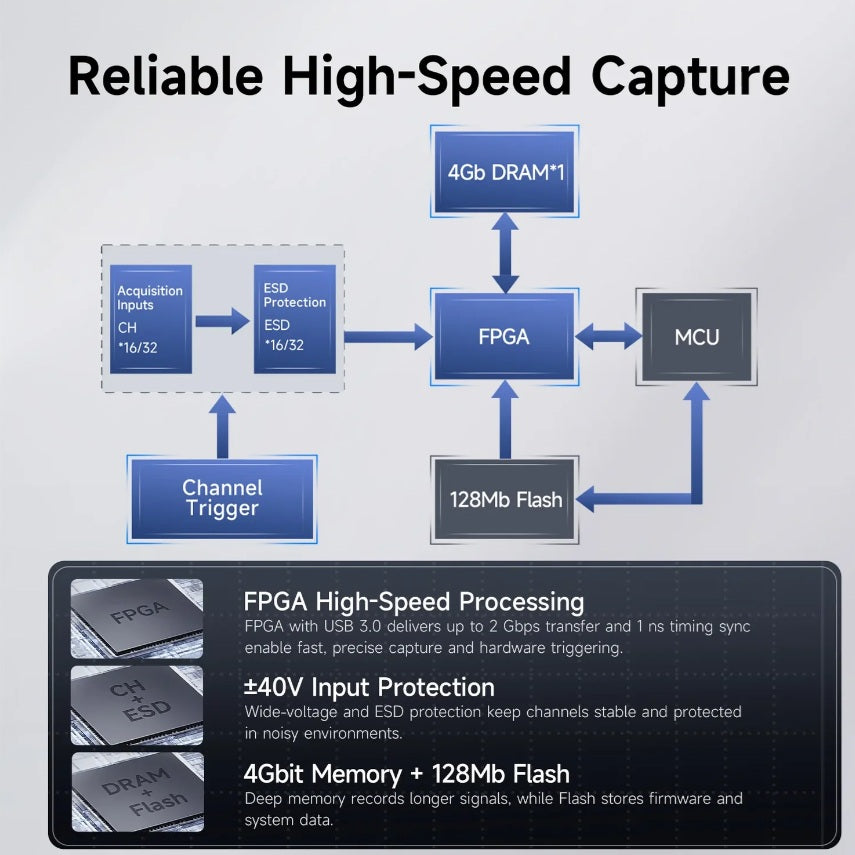

With sampling rates of up to 1GHz, 4Gbit of hardware memory and high speed USB 3.0 connectivity, the DLA-16 Plus provides fast and reliable acquisition of digital signals. It supports up to 16 channels at 500MHz in Buffer mode and 16 channels at 125MHz in Stream mode, making it suitable for both high speed and long duration signal analysis.

Supporting more than 120 protocol decoders, multiple acquisition modes and detailed digital waveform measurements, it provides a versatile platform for analyzing communication buses, embedded systems and complex digital circuits.

The DLA-16 Plus also features 4 channel PWM output with adjustable 3.3V signals from 1Hz to 20MHz, adding useful signal generation capabilities for hardware testing and verification.

Perfect for electronics engineers, technicians, developers and advanced makers who need powerful digital signal analysis in a compact USB connected instrument.

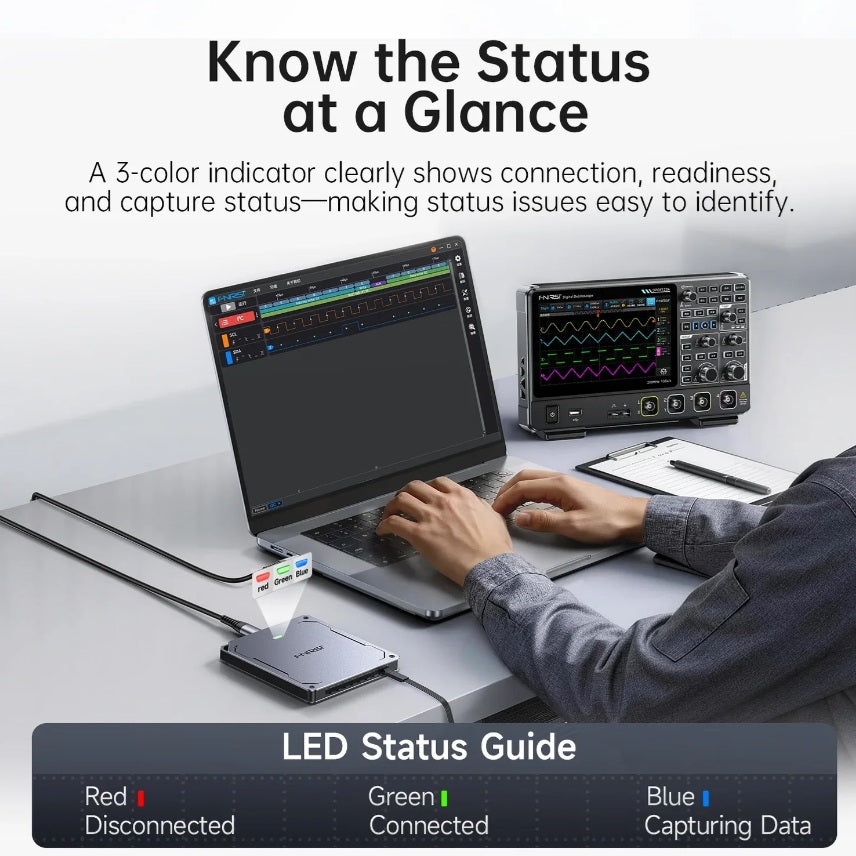

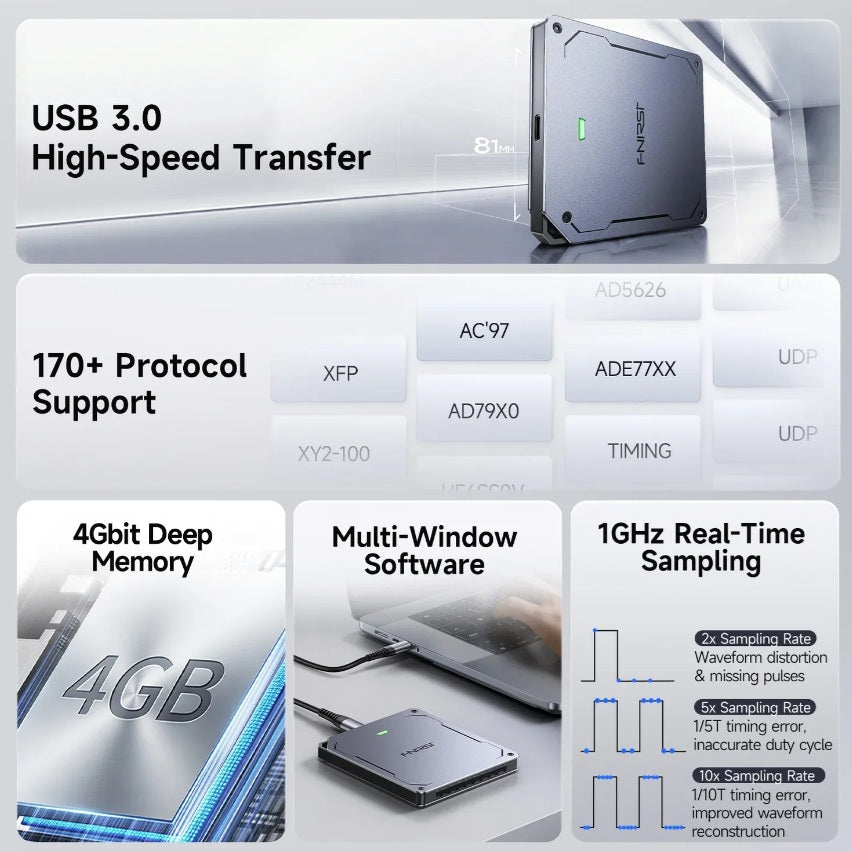

Highlights:

• 16 Channel Logic Analysis: Capture and analyze up to 16 digital signals simultaneously.

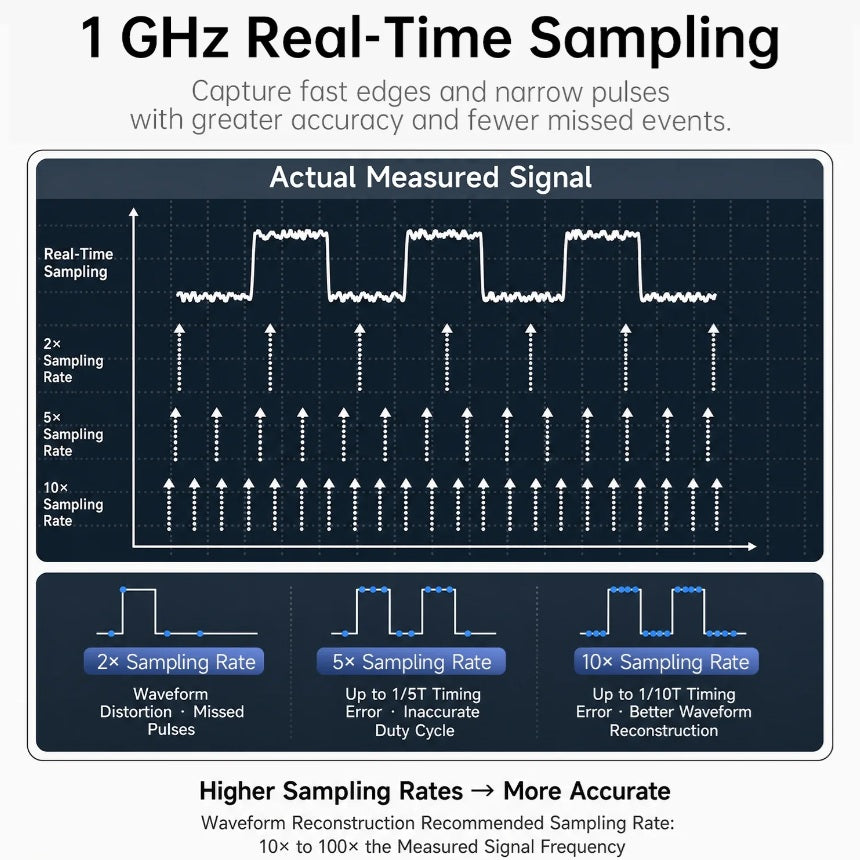

• Up to 1GHz Sampling: High speed acquisition for detailed digital signal analysis.
• 4Gbit Hardware Memory: Large buffer memory for high speed waveform capture.

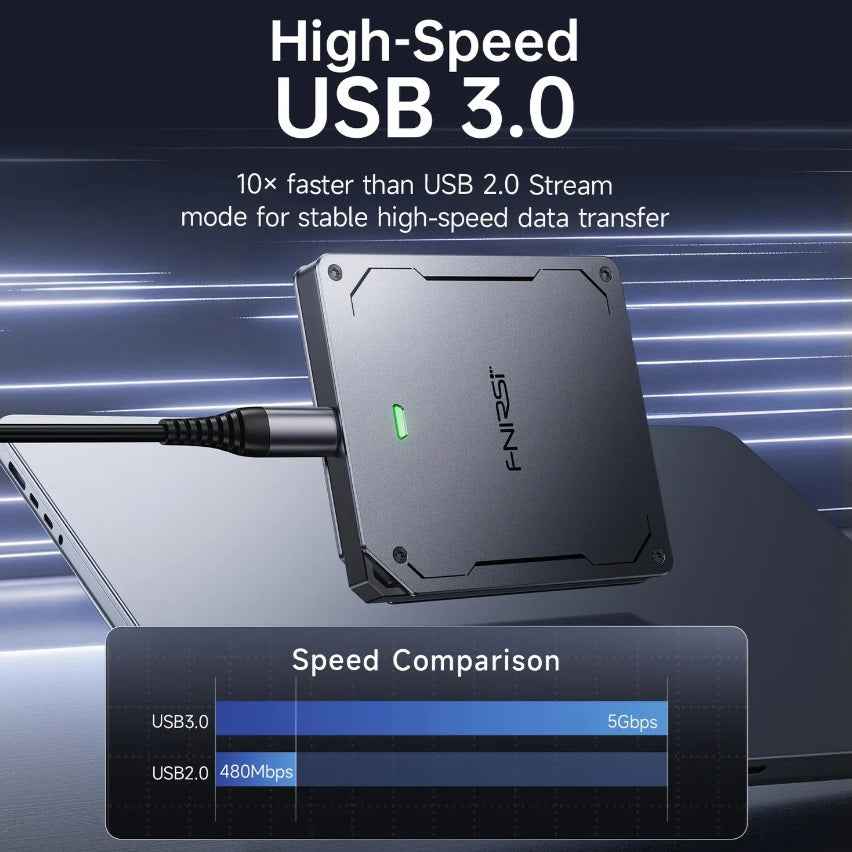

• USB 3.0: Up to 5Gbps high speed data transfer between the analyzer and computer.
• 120+ Protocol Decoders: Extensive protocol decoding with custom protocol support.

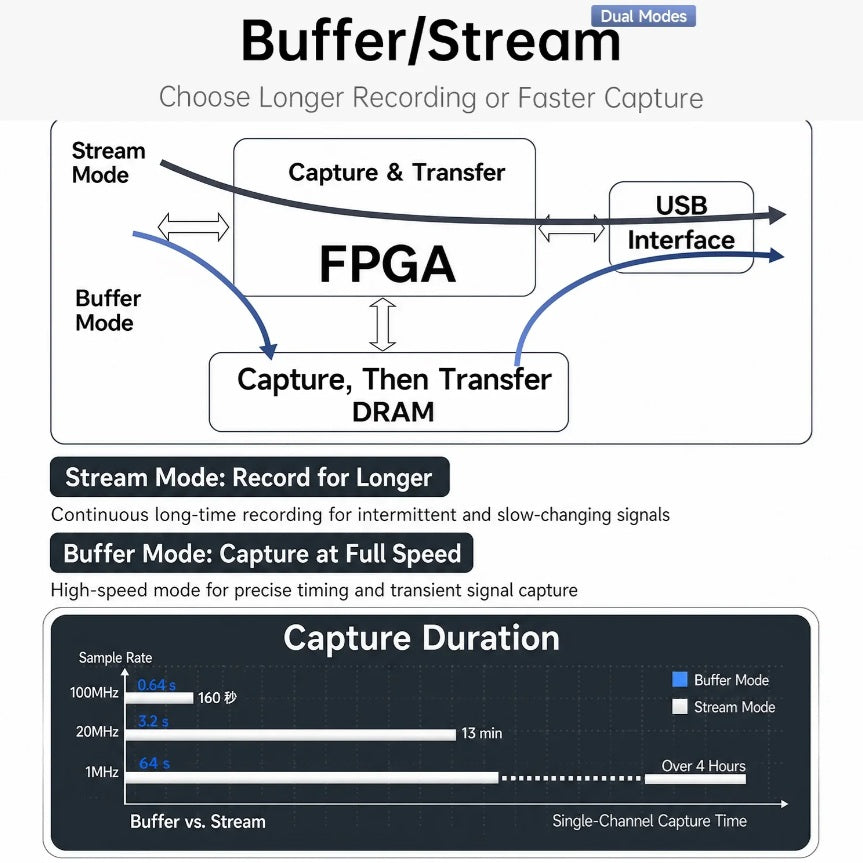

• Multiple Acquisition Modes: Supports Buffer, Stream and Roll modes for flexible signal capture.
• 4 Channel PWM Output: Generates 3.3V PWM signals from 1Hz to 20MHz.
• Waveform Measurements: Supports frequency, period, pulse width, duty cycle and timing measurements.
• Flexible Data Export: Captured data can be exported in CSV or BIN format.

Specifications:

Logic Analyzer:

• Model: DLA-16 Plus.
• Digital Channels: 16.
• Maximum Sampling Rate: Up to 1GHz.
• Buffer Sampling: Up to 16CH / 500MHz.
• Stream Sampling: Up to 16CH / 125MHz.
• Hardware Memory: 4Gbit.
• Acquisition Modes: Buffer, Stream, Roll.
• Trigger Modes: Rising edge, falling edge, high level, low level and any edge.
• Protocol Decoding: 120+ protocols with custom protocol support.
• Measurements: Pulse width, period, frequency, duty cycle, cross channel and time difference.
• Data Export: CSV / BIN.
• Project Format: .demo.

PWM Output:

• Output Channels: 4.
• Output Voltage: 3.3V.
• Frequency Range: 1Hz-20MHz.

General:

• PC Interface: USB 3.0.
• Maximum USB Transfer Rate: Up to 5Gbps.
• Connector: USB Type C.
• Software: DLA-Logic.
• Software Language: Chinese or English.
• Application: Digital signal capture, protocol analysis, timing analysis and embedded system debugging.
• Dimensions: ~90×81×11mm.
• Weight: ~115g.

Ideal For:

• 🔧 Digital circuit troubleshooting and debugging.
• ⚡ High speed digital signal and timing analysis.
• 💻 Communication protocol decoding and development.
• 🤖 Microcontroller, FPGA and embedded system projects.
• 🎓 Electronics engineering, development and advanced STEM applications.

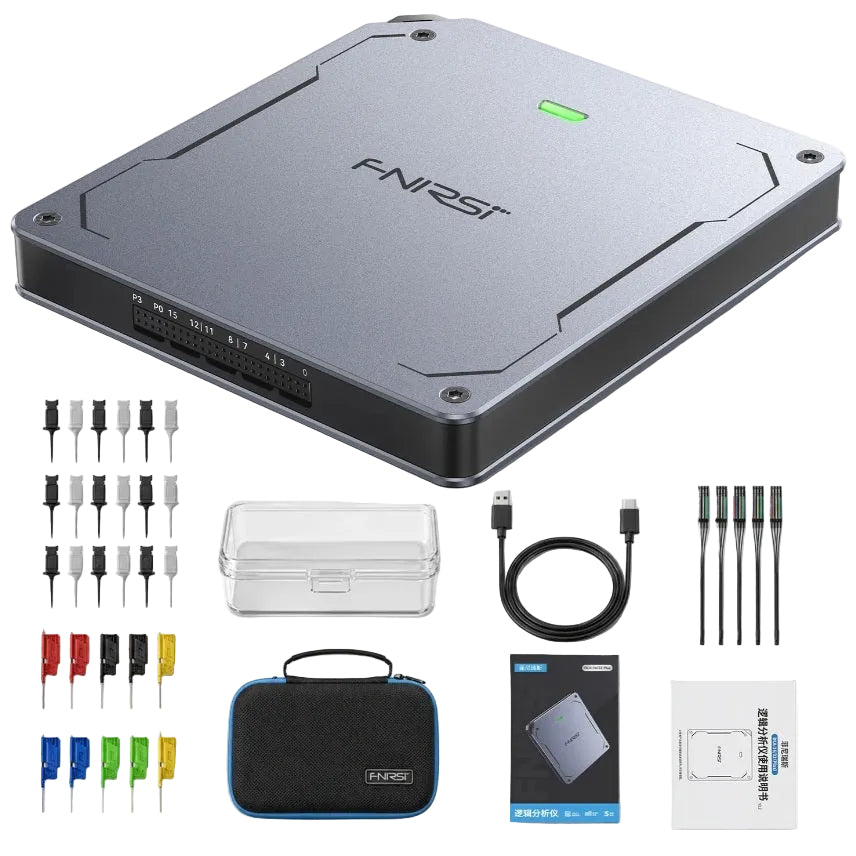

Package Includes:

• FNIRSI DLA-16 Plus Logic Analyzer.

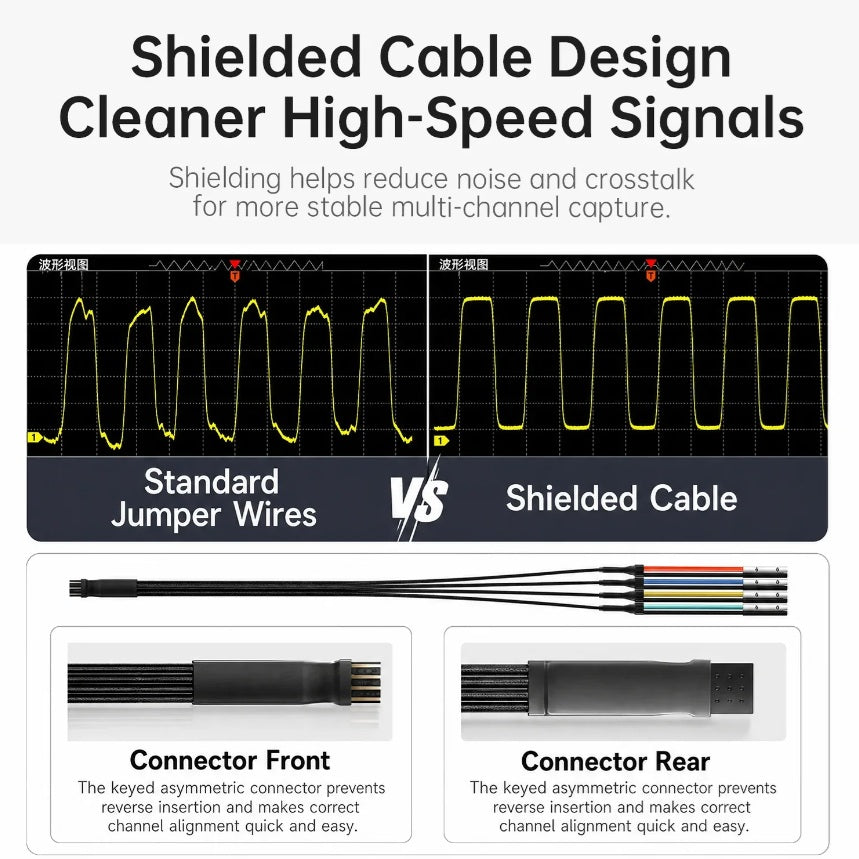

• 5× 4 Shielded Cables.
• 18× Mini IC Test Hooks.
• USB 3.0 Data Cable.
• 10× IC Test Hooks.
• Transparent Storage Case for Test Hooks.
• User Manual.
• Storage case.


Note:

• This product is the DLA-16 Plus version.
• The maximum sampling rate depends on the number of channels and acquisition mode being used.
• Advanced serial and parallel trigger functions are available on the DLA-32 Plus and are not supported by the DLA-16 Plus.
• A compatible computer running the FNIRSI DLA-Logic software is required for operation.
• Product specifications and included accessories may be updated by the manufacturer.
