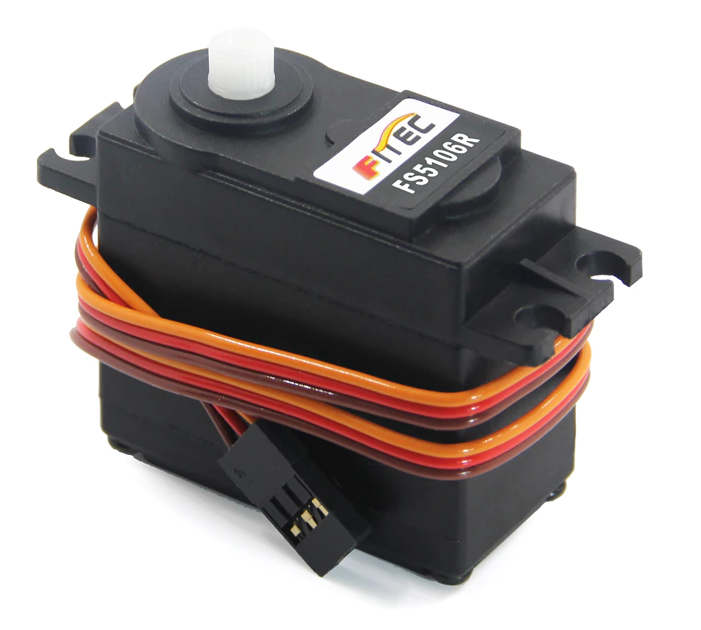

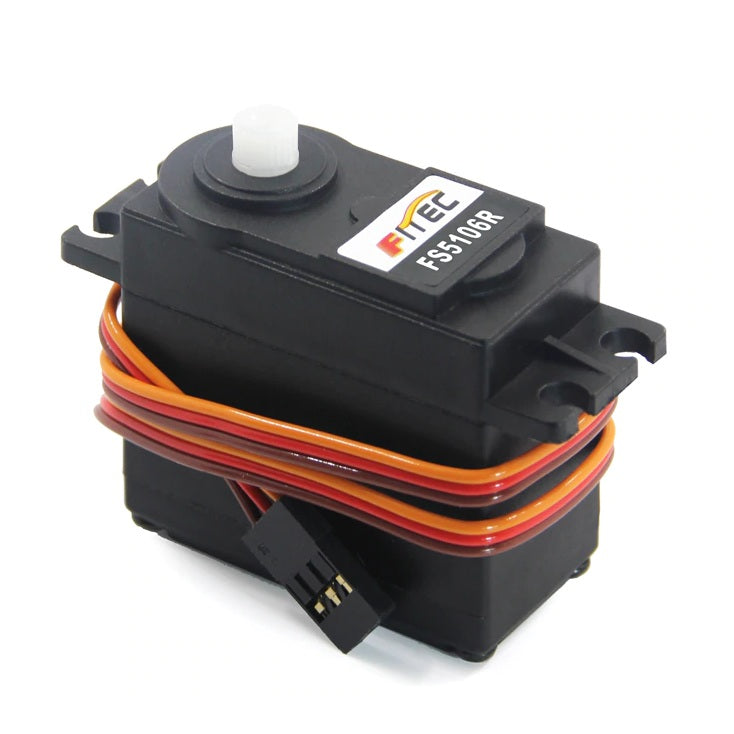

Feetech FS5106R Continuous Rotation Servo

The Feetech FS5106R Continuous Rotation Servo is a high torque standard size servo designed for applications that require continuous 360° rotation with strong and reliable performance.

Unlike standard positional servos, the FS5106R operates in continuous rotation mode, meaning it does not move to a fixed angle. Instead, it rotates continuously, with speed and direction controlled via PWM signals from a microcontroller such as Arduino, ESP32, or Raspberry Pi. A pulse around 1.5ms stops the servo, while higher or lower signals control rotation direction and speed.

Built for more demanding applications, the FS5106R delivers higher torque than smaller servos, making it ideal for robot drive systems, mobile robots, automation mechanisms, and heavier duty robotics projects. Its durable construction ensures reliable operation even under load.

This servo is perfect for makers and engineers looking for a powerful continuous rotation solution in robotics and motion control systems.

Highlights:

• Continuous Rotation Servo: Provides 360° continuous rotation for motor, like operation.
• High Torque Output: Suitable for heavier loads and more demanding robotics applications.
• PWM Speed & Direction Control: Easily control rotation speed and direction using standard servo signals.
• Standard Size Design: Larger form factor for improved strength and stability.
• Reliable Construction: Built for consistent performance in robotics and automation systems.

Specifications:

• Operating Voltage: 6V.

• Stall Torque: ~6kg cm @ 6V.

• Operating Speed: ~100 RPM @ 6V.

• Control Signal: PWM (standard servo signal).

• Rotation Type: Continuous 360°.

• Weight: ~35g.

• Dimensions: ~54×43×20mm.

• Cable Length: ~29cm.


Ideal For:

• 🤖 Robot drive systems and mobile robots.

• ⚙️ Continuous rotation mechanisms.

• 🚗 Medium to large wheel drive robotics projects.

• 🔧 Robotics motion control builds.

• 🎓 Arduino & STEM education projects.


Note:

• Product appearance may vary slightly from the images shown.

• Text or markings on the servo may differ depending on the batch.
