DOBOT Magician Educational Programming Robot Arm - Advanced Pack
DOBOT Magician Educational Programming Robot Arm - Advanced Pack is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Domestic shipping is handled by Akis Express in one working day for pickup points and 2-3 working days for door to door delivery. For international shipping there is option for a Post Office or a FedEx Express.

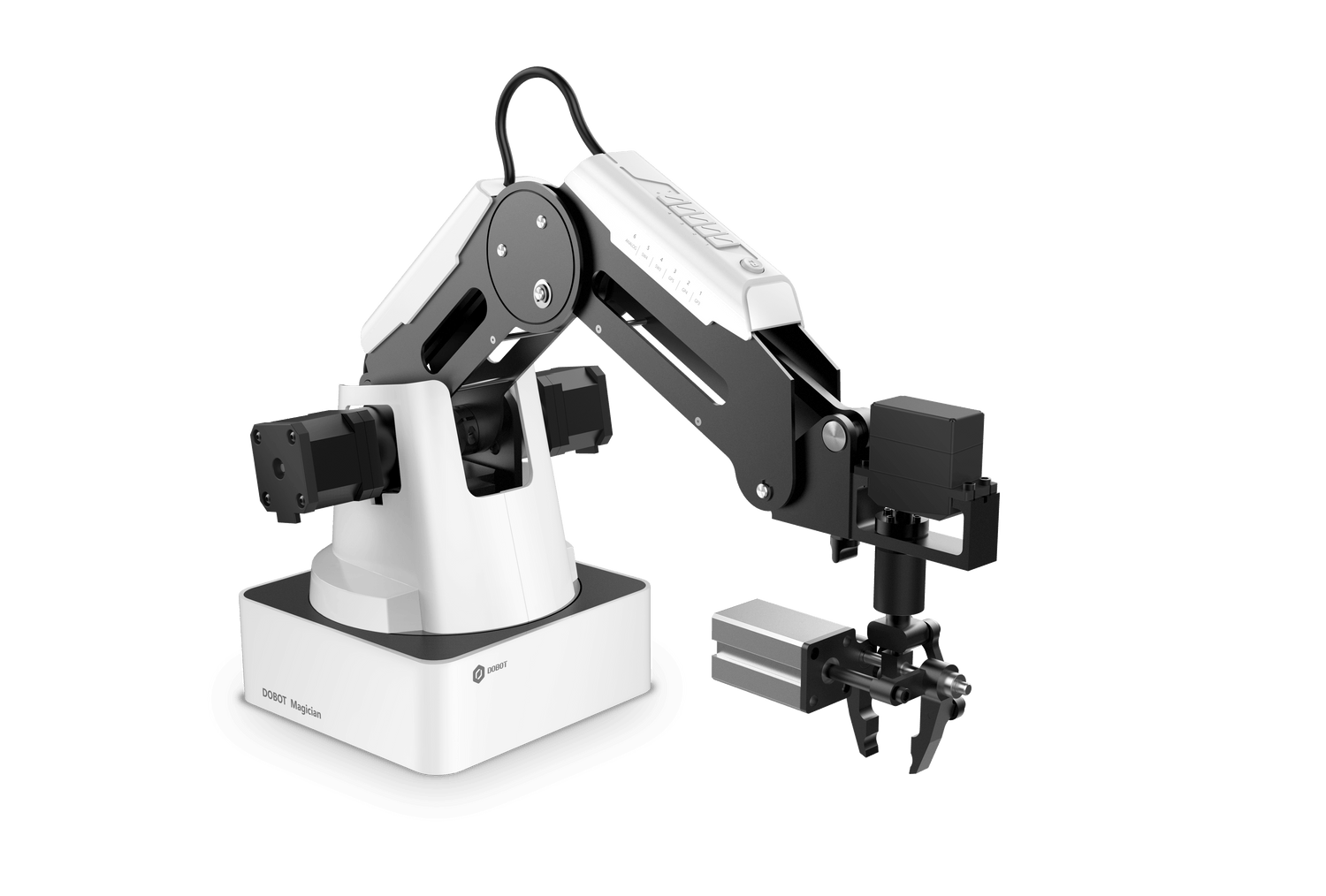

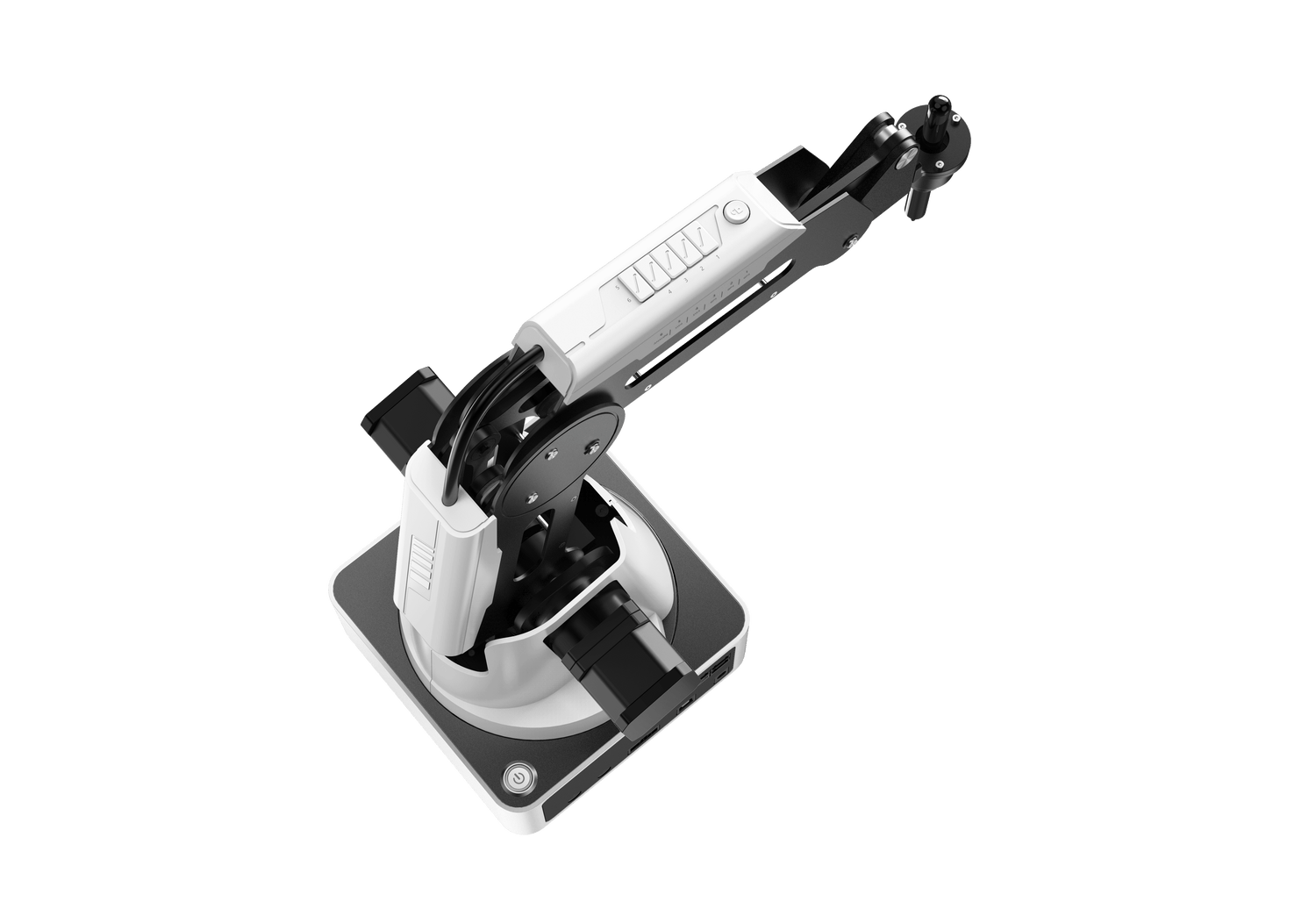

Lightweight Intelligent Training Robotic Arm - An all-in-one STEAM Education Platform
WHAT IS DOBOT MAGICIAN
DOBOT Magician is a multifunctional desktop robotic arm for practical training education. Installed with different end-tools, DOBOT Magician can realize interesting functions such as 3D printing, laser engraving, writing, and drawing. It supports secondary development by 13 extensible interfaces and over 20 programming languages, which really makes your creativity and imagination increase without any limitation. In recognition of its excellent performance in hardware design and software application, DOBOT Magician has received the CES 2018 Innovation Award and iF DESIGN AWARD 2018.
What do you get
- 1x DOBOT Robotic Arm
- 1x Suction Cup Kit
- 1x Gripper
- 1x 3D Printing Kit
- 1x Writing and Drawing Kit
- 1x Laser
- 1x Bluetooth Module
- 1x WiFi Module
- 1x Joystick
Number of Axis 4
Max. Reach 320mm
Position Repeatability(Control) 0.2 mm
Communication USB / WIFI / Bluetooth
Power Supply 100 V - 240 V , 50/60 HZ
Power In 12 V / 6.5A DC
Consumption 60W Max
Working Temperature -10°C - 60°C
Axis Range Max Speed (250g workload)
Joint 1 base -90° to + 90° 320° / s
Joint 2 rear arm 0° to +85° 320° / s
Joint 3 forearm -10° to +95° 320° / s
Joint 4 rotation servo -90° to +90° 480° / s
Net Weight 3.4KG
Gross weight ( Standard Version) 7.2KG
Gross weight ( Education Version) 8.0KG
Base Dimension(Footprint) 158mm × 158mm
Materials Aluminum Alloy 6061, ABS Engineering Plastic
Controller Dobot Integrated Controller
Robot Mounting Desktop
Packing Size (L × W × H) 380mm x 385mm x 480mm
Carton Size for Standard Version (L × W × H) 380mm x 385mm x 480mm
Carton Size for Education Version (L × W × H) 380mm x 385mm x 480mm
Software DobotStudio, Repetier Host, GrblController3.6, DobotBlockly (Visual Programing editor)
SDK ( Software Develop Kit ) Communication Protocol, Dobot Program Library
Extensible I/O Interfaces 1. I/O × 10 (Configurable as Analog Input or PWM Output)
2. Controllable 12V Power output × 4
3. Communication Interface (UART, Reset, Stop, 12V, 5V and two I/O included)
4. Stepper × 2
HIGH QUALIFICATION STANDARDS
DOBOT Magician applies to major international standards like CE, RoHS, ERP, FCC, KC, PSE, TELEC, etc.
HANDS-ON EXPERIENCE FOR EVERYONE
DOBOT Magician is compatible to develop user applications with its 13 I/O ports, API, released protocols. It can be developed with several programming languages, ROS, PLC, Microcontroller and Arduino.
You can control several DOBOT Magician by the same device only, which allows Multi-Robot Collaboration.
FREE COMBINATION & TRAINING CURRICULUM
DOBOT Magician is compatible with multiple accessories such as linear rail kit, conveyor belt kit, visual kit, and crawler robot to apply different training projects. What's more, multiple applications and training curriculum are available. An open platform for robot education like Industrial 4.0, Automation, PLC, etc.
COST-EFFECTIVE ROBOTIC ARM IN TRAINING EDUCATION
With a fair and reasonable price, DOBOT Magician has 0.2mm repeatability which can simulate almost all real factory robot applications.
Up to now, DOBOT Magician has been successfully applied in many institutions such as Tsinghua University, Shandong University, University of Technology Sydney and more. Enterprises such as Volkswagen, Alibaba, Tencent have established cooperation projects with DOBOT Magician.
As the good performance both in hardware design and software application, DOBOT Magician has won the CES 2018 Innovation Award, iF DESIGN AWARD 2018, Red Dot Design Award 2018 and 2017 Red Star Design Award.
