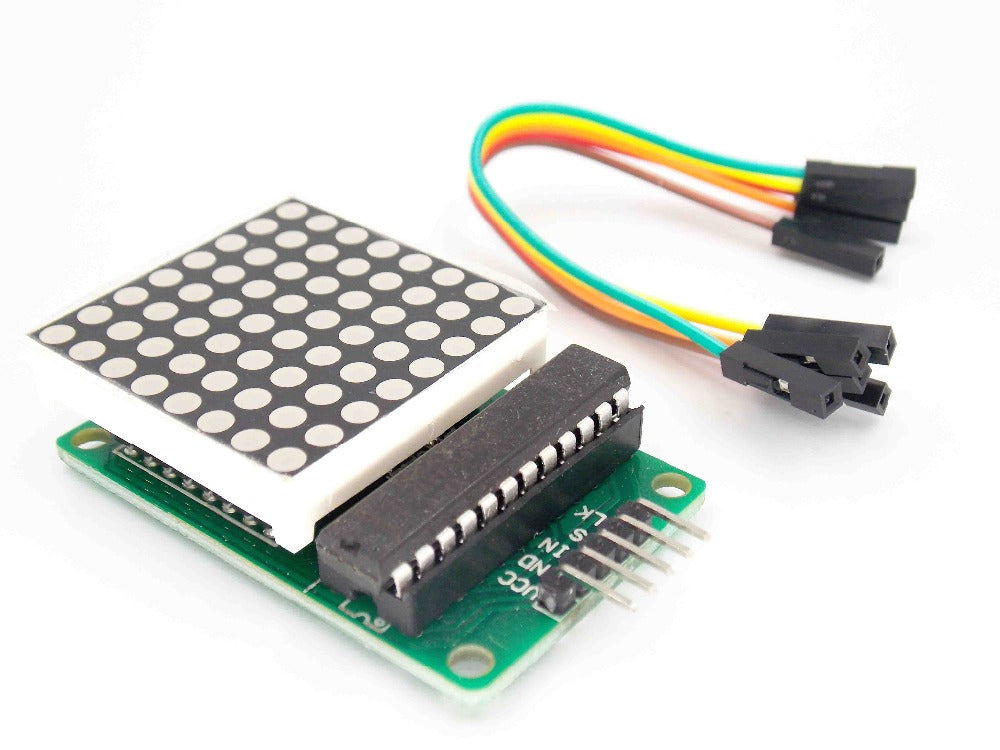

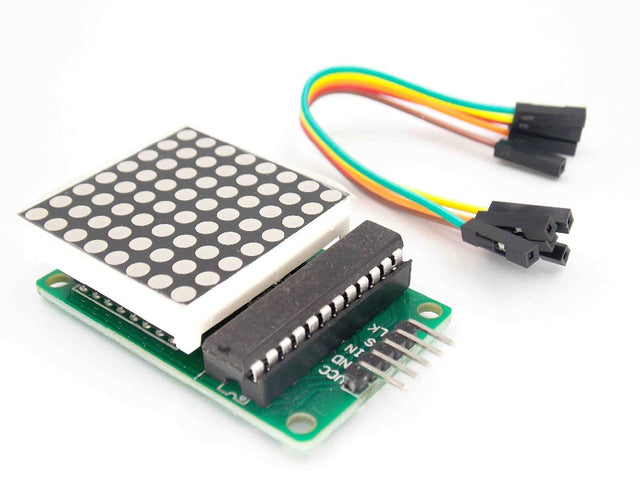

8×8 LED Dot Matrix Display MAX7219

The 8×8 LED Dot Matrix Display MAX7219 is a simple and reliable solution for displaying characters, symbols, and animations, making it an essential addition to any electronics enthusiast, technician, or DIY maker.

Using the MAX7219 driver, this module allows you to easily control an 8x8 grid of LEDs with minimal wiring, making it ideal for scrolling text, icons, and visual effects in your projects.

Designed for easy integration, it can be controlled via SPI communication and can be chained with multiple modules to create larger displays.

Perfect for makers, students, and STEM labs where creative visual output and interactive displays are essential.

Highlights:

• 8×8 LED Matrix: Displays characters, symbols, and animations.

• MAX7219 Driver: Simplifies control with fewer pins required.

• SPI Interface: Easy communication with microcontrollers.

• Expandable: Multiple modules can be chained together.

• Bright Output: Clear red LEDs for strong visibility.

Specifications:

• Operating Voltage: 5V.
• Display Type: 8×8 LED dot matrix.

• Driver: MAX7219.

• LED Color: Red.

• Application: Text display, animations, visual indicators.

• Dimensions: ~57×34×19mm.

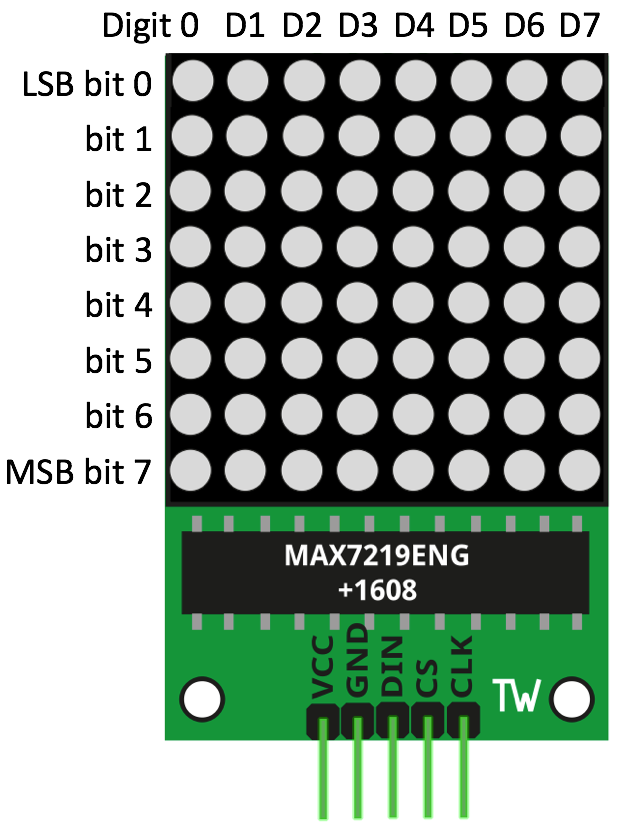

• Interface: 10-pin (VCC, GND, DIN, CS, CLK, VCC, GND, DOUT, CS, CLK).


Ideal For:

• 🔧 Displaying scrolling text.

• ⚡ Creating LED animations.

• 🤖 Robotics and microcontroller projects.

• 🧰 DIY visual indicators.

• 🎓 Arduino & STEM education projects.


Note:

Product appearance may vary slightly from the images shown.
Text or markings on the module may differ depending on the batch.
