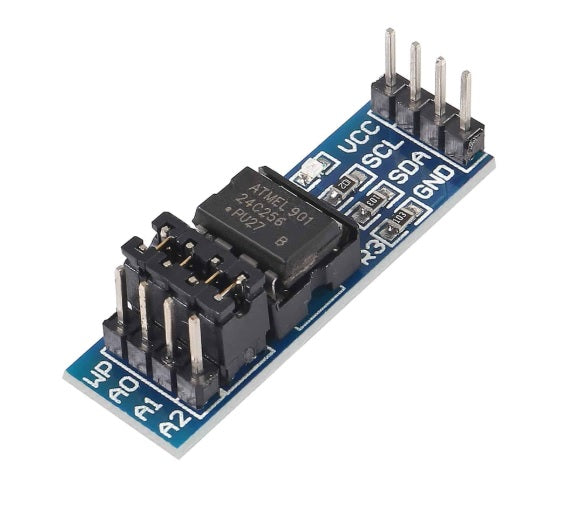

AT24C256 I2C EEPROM Storage Module

The AT24C256 I2C EEPROM Module is a simple and reliable solution for storing data in your electronics projects, making it an essential addition to any electronics enthusiast, technician, or DIY maker.

This module provides 256Kbit (32KB) of non volatile memory, allowing you to store data such as configurations, logs, or sensor readings even after power is removed. It communicates via the I2C interface, making it easy to connect with Arduino and other microcontrollers using only a few pins.

Designed for efficiency and ease of use, it is ideal for projects that require persistent data storage and reliable memory access.

Perfect for makers, students, and STEM labs where data logging and storage are essential.

Highlights:

• Non Volatile Memory: Retains data even when power is off.

• 256Kbit Storage: Provides 32KB of usable memory.

• I2C Interface: Simple communication with minimal wiring.

• Reliable Operation: Stable and widely used EEPROM chip.

• Compact Module: Easy to integrate into any project.
• Communication: Pull up resistors for I2C.

Specifications:

• Operating Voltage: 3.3-5V.
• Chip: AT24C256 EEPROM.

• Memory Size: 256Kbit (32KB).

• Addressing: Configurable I2C address.

• Power Indicator LED: Yes.
• Application: Data logging, configuration storage, memory expansion.

• Dimensions: ~37×12×11mm.

• Interface: 8-pin (VCC, SCL, SDA, GND, WP, A0, A1, A2).


Ideal For:

• 🔧 Storing configuration data.

• ⚡ Data logging and memory storage.

• 🤖 Robotics and microcontroller projects.

• 🧰 IoT and embedded systems.

• 🎓 Arduino & STEM education projects.


Note:

Product appearance may vary slightly from the images shown.
Text or markings on the module may differ depending on the batch.
