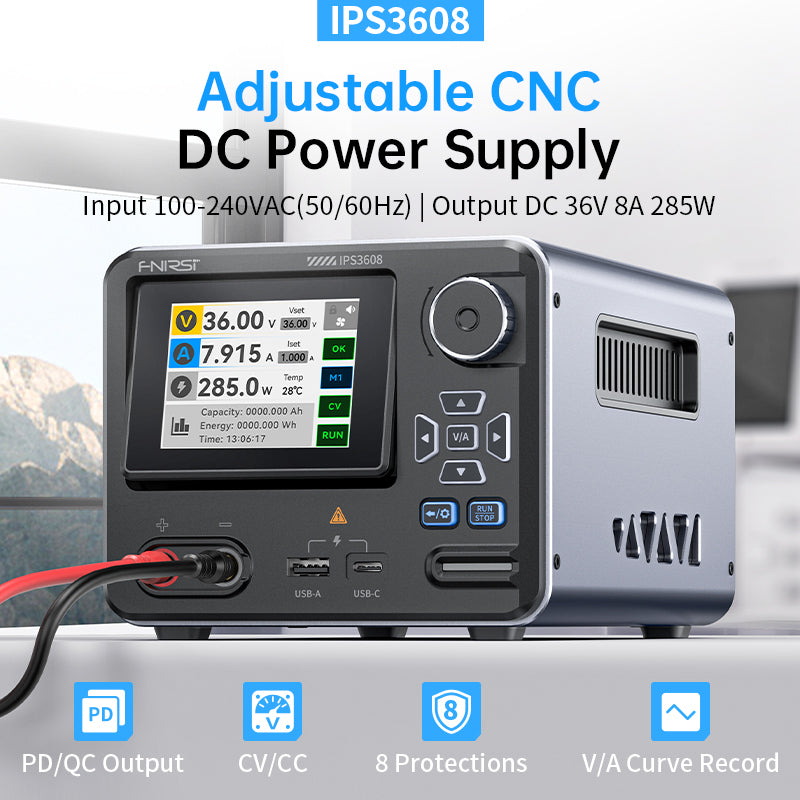

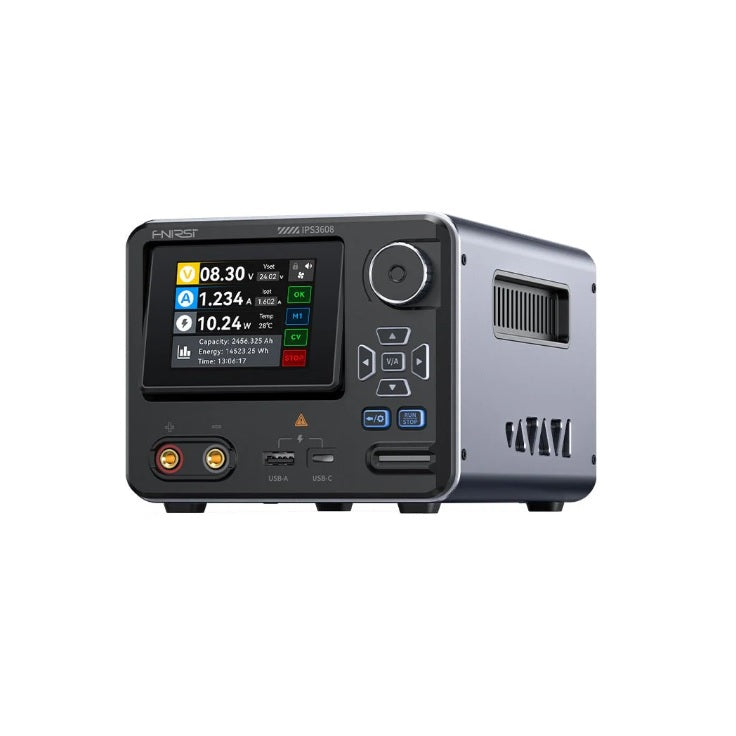

FNIRSI IPS3608 AC/DC Intelligent Digital Control Power Supply (0–36V, 0–8A, 285W)

The FNIRSI IPS3608 is a powerful and intelligent AC-DC adjustable laboratory power supply designed for precise voltage and current control in electronics, repair shops, and development environments. Featuring a clear 2.8″ color display with adjustable backlight and responsive digital control, this bench grade unit provides stable DC output and rich protective features to ensure safe and efficient operation. With wide input compatibility, programmable presets, and comprehensive safety protections, the IPS3608 is suitable for both professional and hobbyist use.

Highlights:

• Adjustable DC output up to 36V and 8A (285W max).
• 2.8″ color display with adjustable backlight for clear realtime monitoring.

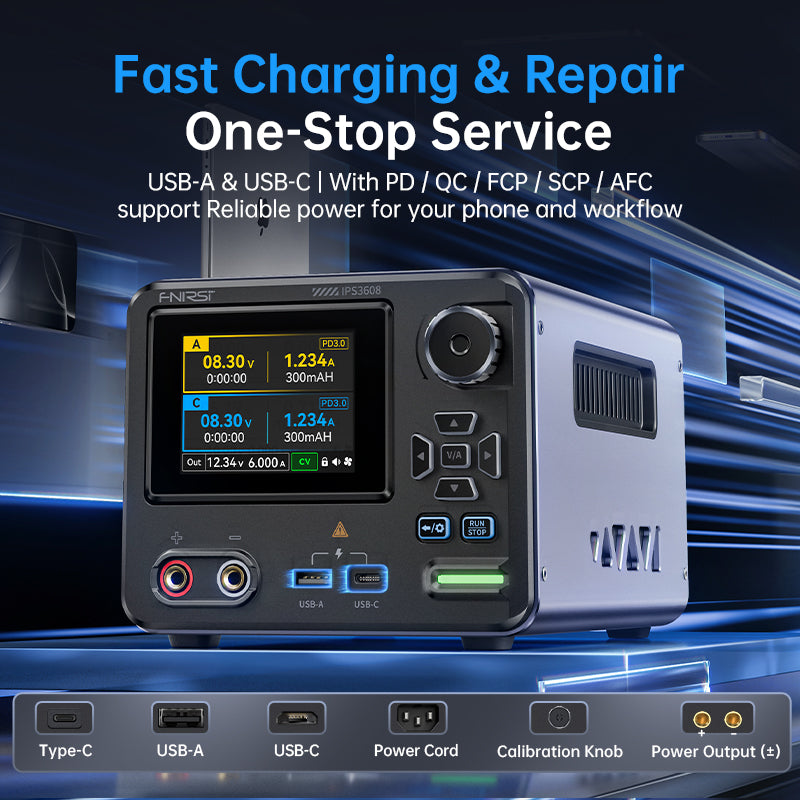

• Supports USB C PD3.0 & USB A QC/SCP/FCP/AFC fast charge protocols for flexible input and device testing.
• High precision voltage and current settings with fine resolution.
• Multiple built in protections ensure safe operation.

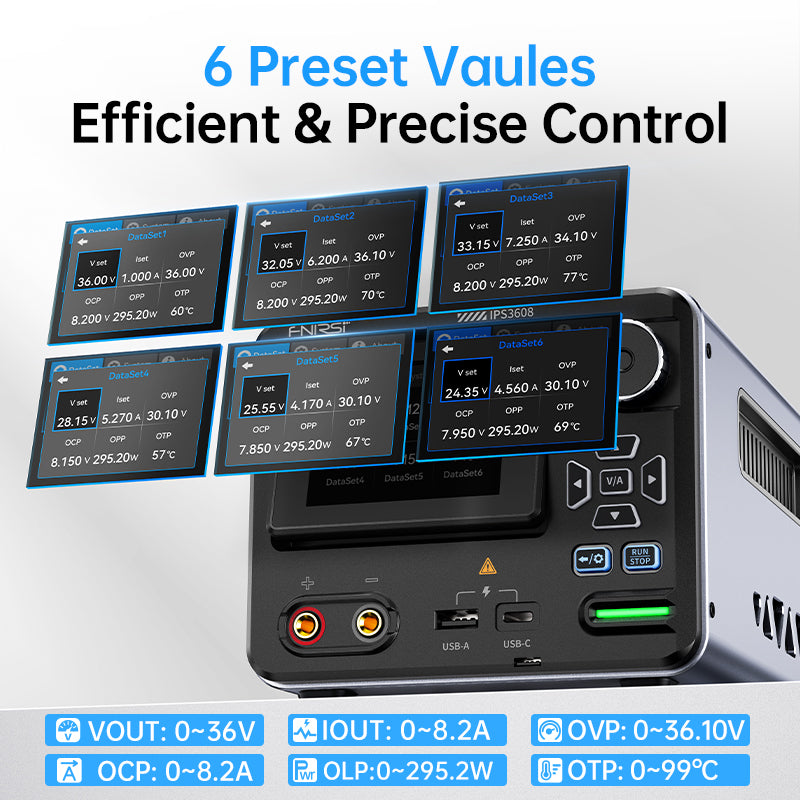

• Firmware upgrade support and programmable output presets.

Specifications:

• Model: FNIRSI IPS3608.
• Input Voltage: 100-240VAC, 50/60Hz.
• Output Voltage Range: 0-36V DC.
• Output Current Range: 0-8A.
• Output Power: 0-285W.
• Voltage Setting Resolution: 0.01V.
• Current Setting Resolution: 0.001A.
• Voltage Accuracy: ±(0.3% + 3 bits).
• Current Accuracy: ±(0.15% + 5 bits).
• Load Regulation: ±(0.2% + 2 bits).
• Display: 2.8″ color screen with adjustable brightness.

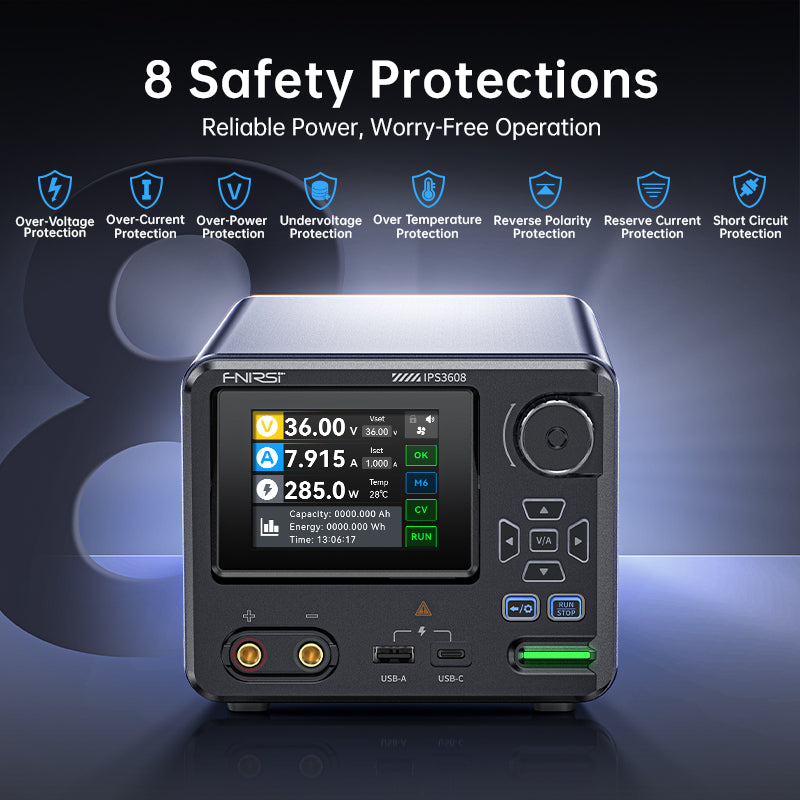

• Safety Protections: Overvoltage, overcurrent, undervoltage, overpower, overtemperature, reverse input, reverse output, short-circuit shutdown.

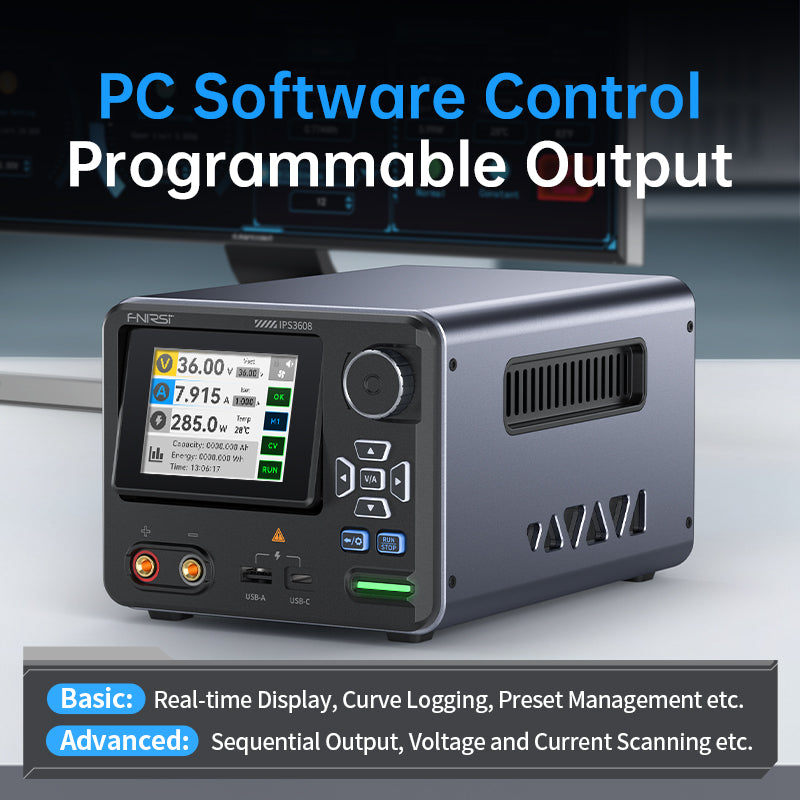

• Firmware & PC Control: Supported.
• Dimensions: ~138×214×115mm.
• Weight: ~2kg.
• Languages: English & Chinese.

Ideal For:

• 🔌 Hardware prototyping & electronics testing.
• 🛠 Bench power for circuit development tasks.
• 📡 Testing chargers, devices, and power systems.
• ⚙️ Lab work, repair shops & service centers.
• 📦 CNC machines, robotics & automation projects.
• 🎓 Education, makers, and DIY hobbyists.
