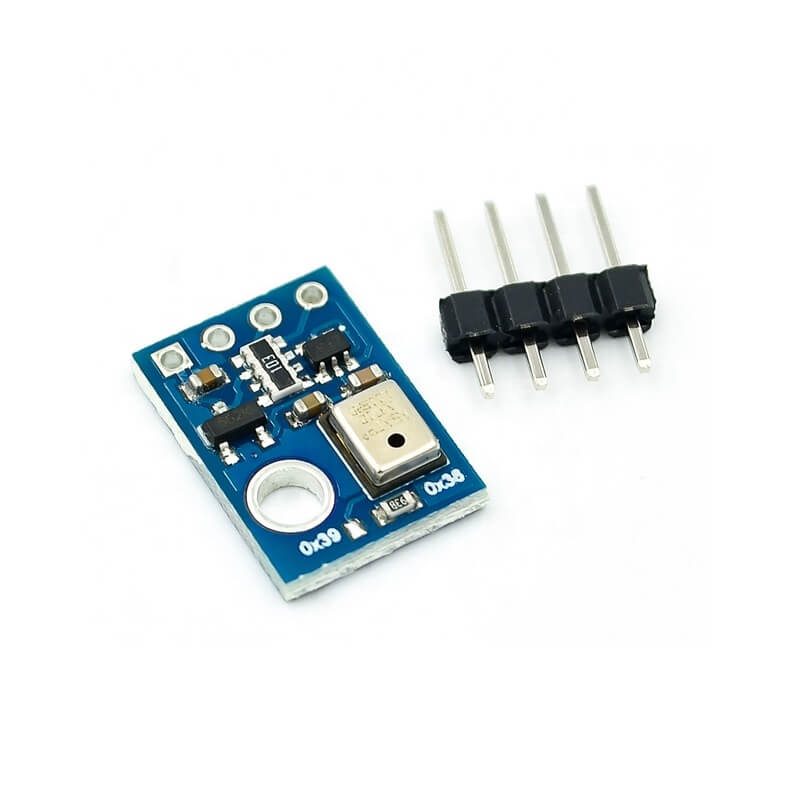

Temperature and Humidity Sensor AHT10

The AHT10 Temperature & Humidity Sensor is a compact and high precision digital sensor designed for reliable environmental monitoring in electronics and IoT projects.

Unlike older analog or basic humidity sensors, the AHT10 features a fully calibrated digital output via I²C interface, providing stable and accurate temperature and relative humidity measurements with minimal external components required.

Thanks to its low power consumption and fast response time, it’s ideal for smart home systems, weather stations, greenhouse automation, and portable monitoring devices.

With simple 4-pin connectivity (VCC, GND, SDA, SCL), the AHT10 integrates easily with Arduino, ESP32, Raspberry Pi, and other I2C compatible boards, making it perfect for both beginners and advanced makers.

Whether you're building a climate monitoring system or adding environmental sensing to your robotics project, the AHT10 is a reliable and modern solution.

Highlights:

• Measures temperature & relative humidity.
• Digital I²C communication interface.
• Factory calibrated for accurate readings.
• Low power consumption.
• Compact and easy to integrate module.
• Compatible with Arduino, ESP32, Raspberry Pi & more.
• Please note: The pins come unsoldered and require soldering before use.

Specifications:

• Operating Voltage: 3.3-5V.
• Sensor Model: AHT10.
• Communication Protocol: I²C.
• Temperature Range: −40°C to +85°C.
• Temperature Accuracy: ±0.3°C (typical).
• Humidity Range: 0% - 100% RH.
• Humidity Accuracy: ±2% RH (typical).
• Dimensions: ~16×11×3mm.

• Interface: 4-pin (VCC, GND, SDA, SCL).

Ideal For:

• 🌦️ DIY weather station projects.

• 🏠 Smart home automation.
• 🌱 Greenhouse & indoor farming systems.
• 🌍 IoT environmental monitoring stations.

• 🎓 Arduino & STEM education projects.


Note:

• Product appearance may vary slightly from the images shown.

• Text or markings on the sensor may differ depending on the batch.
