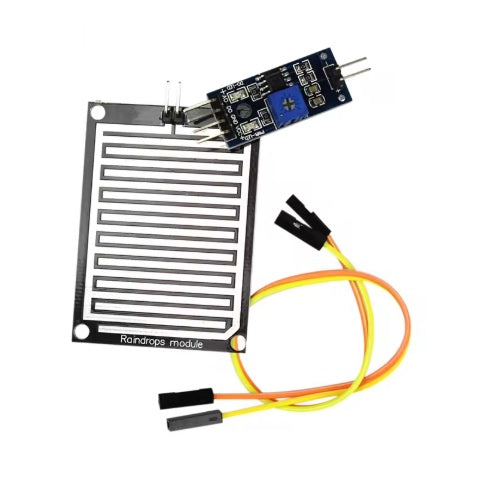

Raindrops Detection Sensor

The Raindrops Detection Sensor is a simple and effective way to detect rain or water droplets in your electronics projects. It works by measuring conductivity changes on the nickel plated sensing plate. When water lands on the surface, resistance changes and the onboard LM393 comparator converts this into a clean signal for your microcontroller.

The module provides both analog and digital outputs, giving you flexibility depending on your application. You can fine tune the sensitivity using the onboard potentiometer to detect light drizzle or heavier rainfall.

This sensor is perfect for STEM education, automation systems, and IoT weather monitoring projects.

Highlights:

• Detects rain and water droplets via conductivity.
• LM393 comparator for stable signal output.
• Adjustable sensitivity via built in potentiometer.

• Digital (DO) and Analog (AO) outputs.
• Works with 3.3V and 5V microcontrollers.
• Easy 4-pin interface.

Specifications:

• Operating Voltage: 3.3-5V.
• Comparator IC: LM393.
• Output Signals: Analog (A0) & Digital (D0).

• Sensing Plate: Nickel plated PCB.
• Dimensions:
  • Module Size: ~32×14mm.
  • Detection Plate Size: ~56×40mm.
• Interface: 4-pin (VCC, GND, A0, D0).

Ideal For:

• 🌦️ Weather monitoring systems.
• 🌿 Smart irrigation systems.

• 🚨 Rain detection alarms.

• 🤖 Robotics & automation projects.
• 🎓 Arduino & STEM education projects.


Note:

• Product appearance may vary slightly from the images shown.

• Text or markings on the sensor may differ depending on the batch.
