Obstacle Avoidance Sensor

Obstacle Avoidance Sensor

  • €1,99
Tax included. Shipping calculated at checkout.

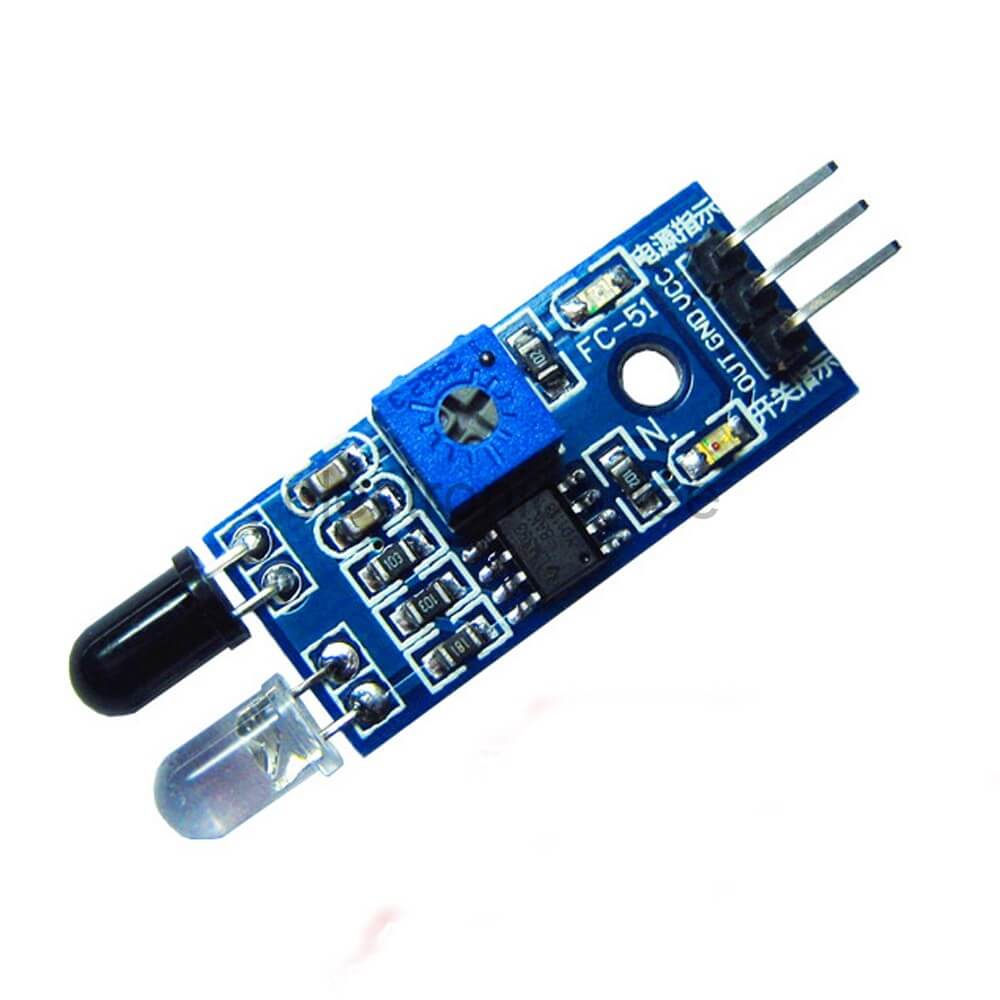

Infrared obstacle avoidance sensor is designed to detect obstacles or the difference in reflective services. One application is to help a wheeled robot avoid obstacles with a sensor to react to adjustable distance settings.

This device has an infrared transmitter and receiver, that forms the sensor pair. The transmitter LED emits a certain frequency of infrared, which the receiver LED will detect. The receiving LED will detect some of the signal back and will trigger the digital on/off “signal” pin when a specific threshold “distance” has been detected. This Infrared Obstacle Avoidance Sensor returns a signal when it detects an object in range. The range of the sensor is around 2-30 cm with a detection angle of 35 degrees. The sensor has a potentiometer for range adjustment control. It operates at 3.5 to 5 volts at around 20 mA.
