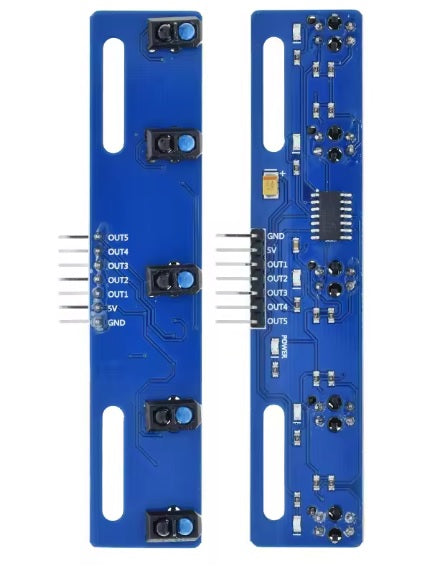

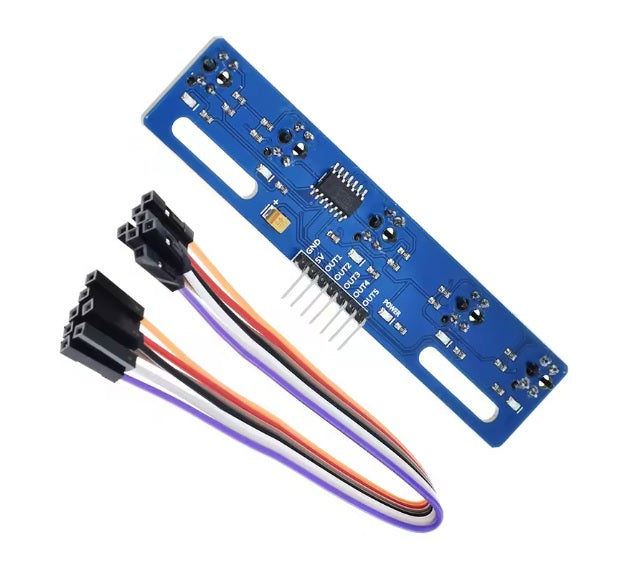

5 Channel IR Infrared Line Tracking Sensor

5-Channel IR Line Tracking Sensor Array – Arduino, AVR, ARM, PIC Compatible.

Enhance your robotics projects with this 5-Channel IR Line Tracking Sensor Array, designed for fast line following and grid navigation. This module is compatible with Arduino, AVR, ARM, PIC, and other microcontrollers, making it ideal for autonomous robotics applications.

Key Specifications:

• Compatible Platforms: Arduino, AVR, ARM, PIC.
• IR Sensor Configuration: 8 IR emitter-receiver pairs (5 active sensors for optimal resolution).
• Sensor Spacing: 15mm between each IR sensor.
• Power Supply: 3.3V – 5V.
• Outputs: 5 digital signal outputs (OUT 1 to OUT 5) for direct MCU connection.
• Mounting: 3mm diameter mounting holes for easy installation.
• Status Indicators: LED on each sensor to indicate line detection.

Features:

• Precision Line Tracking: Uses 5 sensors for high-resolution tracking.
• Easy-to-Use Digital Outputs: Directly connect to microcontroller I/O pins.
• Ideal for Robotics Applications: Perfect for fast-moving line-following robots and grid-based navigation systems.
• Integrated Status LEDs: Visual indication of sensor activity for easy debugging.
• Reliable and Efficient: Evenly spaced IR sensors ensure consistent tracking performance.

This IR Line Tracking Sensor Array is a must-have for developers working on autonomous robots, maze-solving bots, and industrial automation projects.
