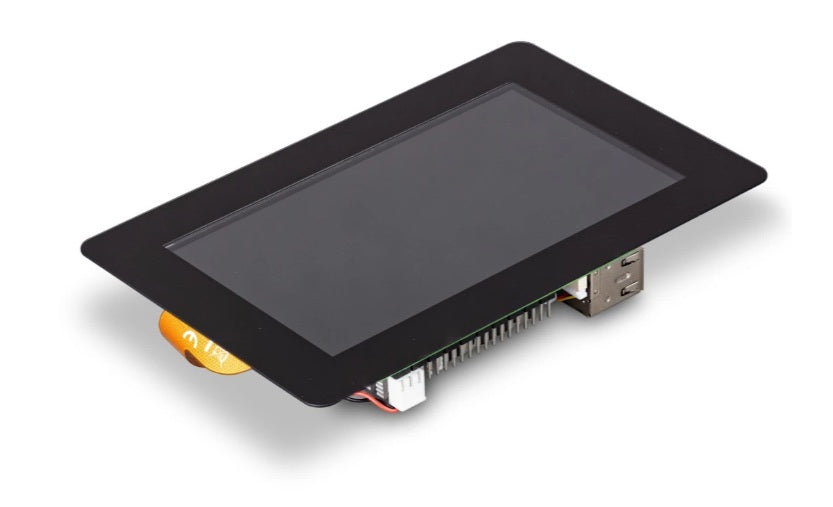

Raspberry Pi Touch Display 2 (5” Portrait)

The Raspberry Pi Touch Display 2 (5″ Portrait) is a compact official touchscreen display designed for Raspberry Pi computers, offering a sharp 720×1280 resolution in a portrait optimized format. With a responsive five point capacitive multi touch panel, it allows full control of the Raspberry Pi interface without needing a mouse or keyboard.

The display connects directly to the Raspberry Pi using the DSI interface for video and touch data and is powered directly from the GPIO header, requiring no additional power supply.

Its anti glare TFT LCD panel, wide viewing angle, and compact size make it ideal for embedded systems, smart home dashboards, control panels, and portable Raspberry Pi projects. The display is fully supported by Raspberry Pi OS, ensuring easy setup and seamless integration.

Highlights:

• 5″ portrait touchscreen display for Raspberry Pi.

• 720×1280 high resolution TFT LCD panel.

• Capacitive multi touch support (up to 5 points).

• DSI interface connection for display and touch.

• Powered directly from Raspberry Pi GPIO.

• Anti glare screen for improved visibility.

• Compatible with Raspberry Pi OS with built in drivers.

• Compact design ideal for embedded projects.

• Includes DSI cables, power cable, and mounting screws.

Specifications:

Display

• Screen Size: 5″.

• Resolution: 720×1280 pixels.

• Display Type: TFT LCD.

• Color Depth: 24-bit RGB (16M colors).

• Touch Technology: Capacitive multi touch (5 points).

• Viewing Angle: ~80°.

• Surface Treatment: Anti glare.

• Brightness: ~500cd/m².

• Touch Response Time: ~35ms.

Hardware & Interface

• Interface: DSI (Display Serial Interface).

• Power Supply: Via Raspberry Pi GPIO (5V).

• Compatible Boards: Raspberry Pi 1B+, 2B, 3B, 3B+, 4B, 5.

• Not Compatible With: Raspberry Pi Zero series / Pico.

Physical

• Dimensions: ~143.4×91.5mm.

• Active Display Area: 110.4×62.1mm.

• Operating Temperature: −20°C to +70°C.
• Weight: ~180g.

Ideal For:

• 🖥️ Raspberry Pi touch interfaces & control panels.

• 🏠 Smart home dashboards and IoT displays.

• 📊 System monitoring and status displays.

• 🤖 Embedded electronics and robotics projects.

• 🎓 Education, STEM learning, and prototyping.

• 🧰 Portable Raspberry Pi development setups.
