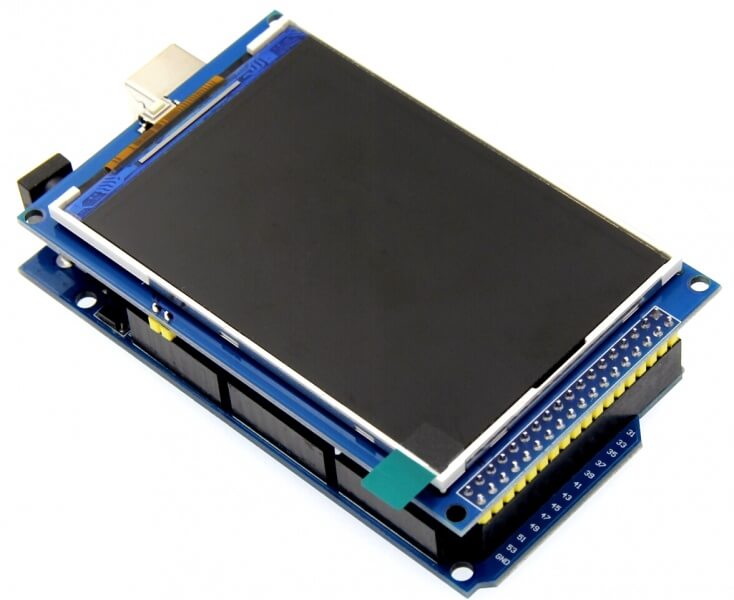

LCD Display 3.5 inch TFT
€18,99
Unit price /
Unavailable
Directly pin-pin compatible with an Arduino Mega 2560 development board.
- 3.5-inch color screen, support 65K color display, display rich colors
- 320x480 HD resolution for clear display
- Fast transmission with 16-bit parallel bus
- On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
- Support Arduino Mega2560 direct plug-in use
- Provides an Arduino library with a rich sample program
- Easy to expand the experiment with SD card slot
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| Name | Parameter |
| Display Color | RGB 65K color |
| SKU | MAR3513 |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | ILI9488 |
| Resolution | 480*320 (Pixel) |
| Module Interface | 16-bit parallel interface |
| Active Area | 48.96x73.44 (mm) |
| Module PCB Size | 60.30x96.60 (mm) |
| Backlight | 6 chip HighLight white LEDs |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 5V/3.3V |
| Power Consumption | TBD |
| Product Weight(Package containing) | about 49(g) |
