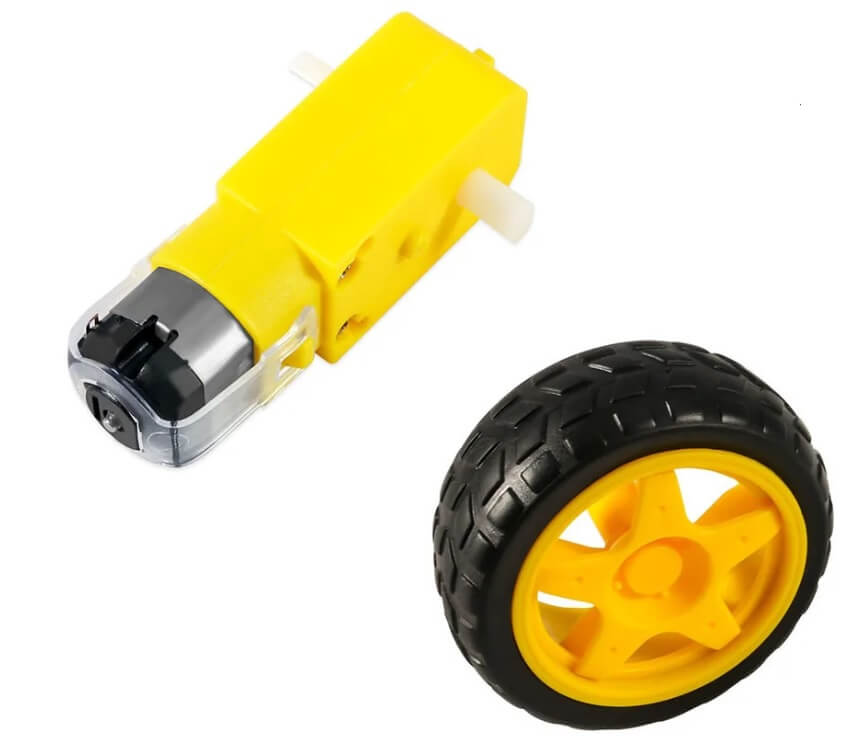

TT Motor Smart Wheel Chassis Robot Gear Motor Kit

The TT Motor Smart Wheel Chassis Robot Gear Motor Kit is a complete starter kit designed to help you quickly build a 2WD robot car platform for robotics and STEM projects.

The kit is based on TT DC gear motors, which provide a good balance between speed and torque, making them ideal for small mobile robots. The included wheels are designed to fit perfectly onto the motor shafts, ensuring smooth movement and easy assembly.

This kit provides the essential mechanical components needed to build a robot chassis, allowing you to combine it with motor drivers, microcontrollers, and sensors to create fully functional robotics projects.

Perfect for beginners and makers who want a simple and reliable starting point for building robot cars and learning robotics.

Highlights:

• Complete 2WD Robot Kit: Includes motor and wheel for building a basic robot platform.
• TT Gear Motors: Provides good torque and speed for small robotics applications.
• Easy Assembly: Plug and play style components for quick setup.
• Lightweight Design: Ideal for small and efficient robot builds.
• Beginner Friendly: Perfect for first time robotics and STEM projects.

Specifications:

• Motor Type: TT DC Gear Motor.

• Operating Voltage: 3-6V.

• Gear Ratio: ~1:48.

• No-load Speed: ~200 RPM @ 6V.

• Max Torque: 800gf cm MIN (3V).
• Load Current: 70mA (250mA MAX 3V).
• Drive Type: 2WD (2 wheel drive).

• Shaft Type: D-shaft compatible with included wheels.

• Material: Plastic chassis components.
• Wheel Diameter: ~65mm.
• Wheel Width: ~28mm.
• Dimensions: ~70×35×22mm.

Ideal For:

• 🤖 Robot car starter projects.

• 🚗 Line following and obstacle avoidance robots.

• ⚙️ DIY robotics platforms.

• 🔧 Robotics motion control builds.
• 🎓 Arduino & STEM education projects.


Note:

• Product appearance may vary slightly from the images shown.

• Text or markings on the motor may differ depending on the batch.
