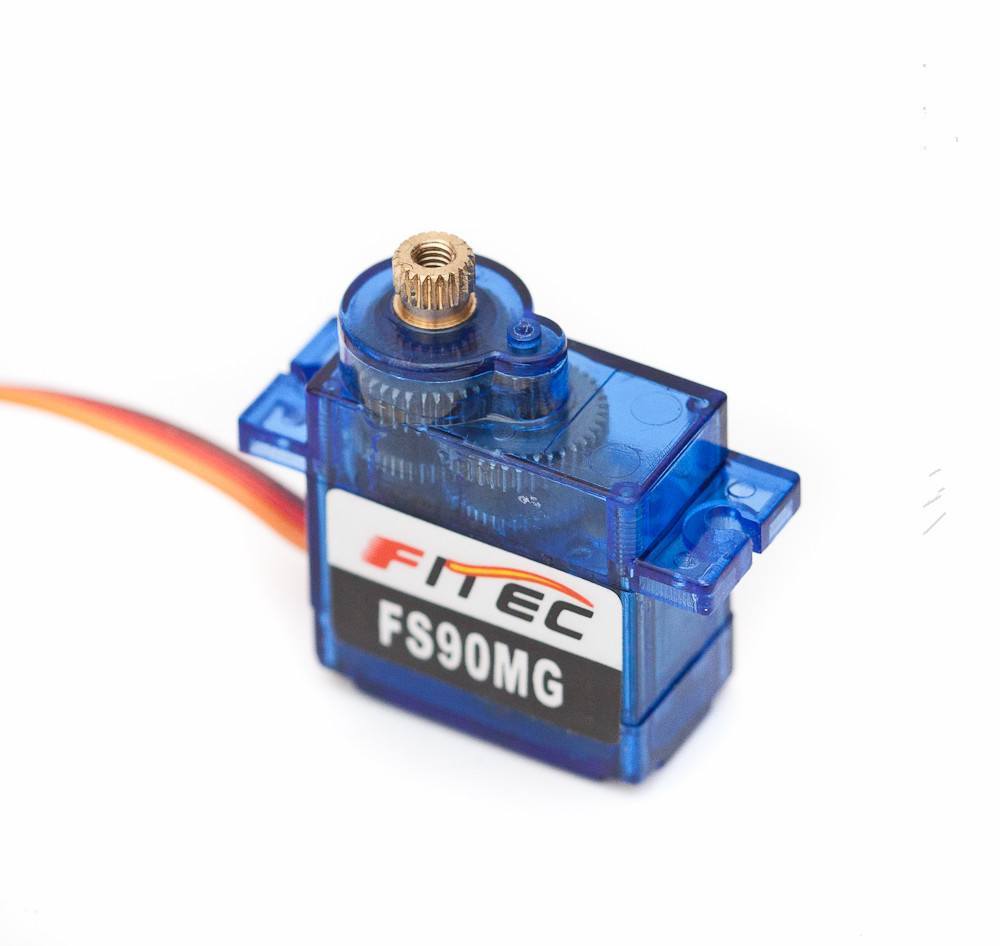

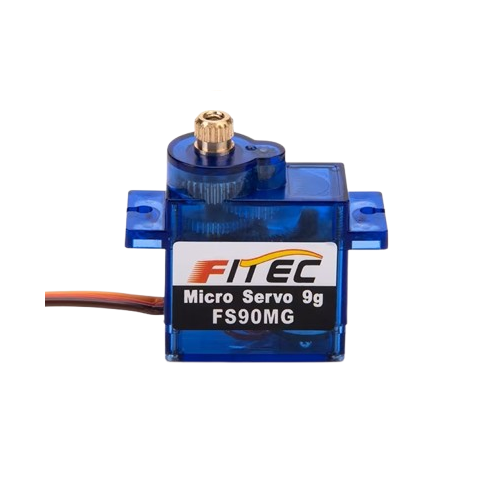

Feetech FS90MG 9g Micro Servo Motor

The Feetech FS90MG 9g Micro Servo Motor is a compact and powerful 9g metal gear servo designed for precise position control in robotics and electronics projects.

Unlike continuous rotation servos, the FS90MG is a positional servo, meaning it can rotate to a specific angle (typically 0° to 180°) based on the PWM control signal sent from a microcontroller such as Arduino, ESP32, or Raspberry Pi. This makes it ideal for applications that require accurate movement and positioning.

The metal gear train provides increased durability and torque compared to plastic gear servos, making it suitable for projects that involve higher mechanical loads or frequent movement. Despite its small size, the FS90MG delivers reliable performance for robotics mechanisms, moving parts, and control systems.

Its lightweight design and simple 3 wire interface make it easy to integrate into robotics, automation systems, and STEM education projects.

Highlights:

• Precise Position Control: Supports accurate 0°-180° angular positioning using PWM signals.
• Metal Gear Construction: Strong and durable gears for improved reliability and longer lifespan.
• Compact Micro Servo: Lightweight 9g size ideal for small robotics and embedded projects.
• High Torque for Its Size: Provides strong torque for lightweight mechanical applications.
• Easy Microcontroller Integration: Compatible with Arduino, ESP boards, Raspberry Pi, and other development platforms.

Specifications:

• Operating Voltage: 4.8-6V.

• Stall Torque: ~2.2kg cm @ 6V.

• Operating Speed: ~0.10sec / 60° @ 6V.

• Control Signal: PWM (standard servo signal).

• Rotation Range: ~0°-180°.

• Gear Type: Metal gears.

• Weight: ~10g.

• Dimensions: ~31×31×12mm.

• Cable Length: ~24cm.

Ideal For:

• 🤖 Robotics arms and mechanisms.

• ⚙️ Precision positioning systems.

• 🚗 Steering systems in robot cars.

• 🔧 Robotics motion control builds.

• 🎓 Arduino & STEM education projects.

Note:

• Product appearance may vary slightly from the images shown.

• Text or markings on the servo may differ depending on the batch.
