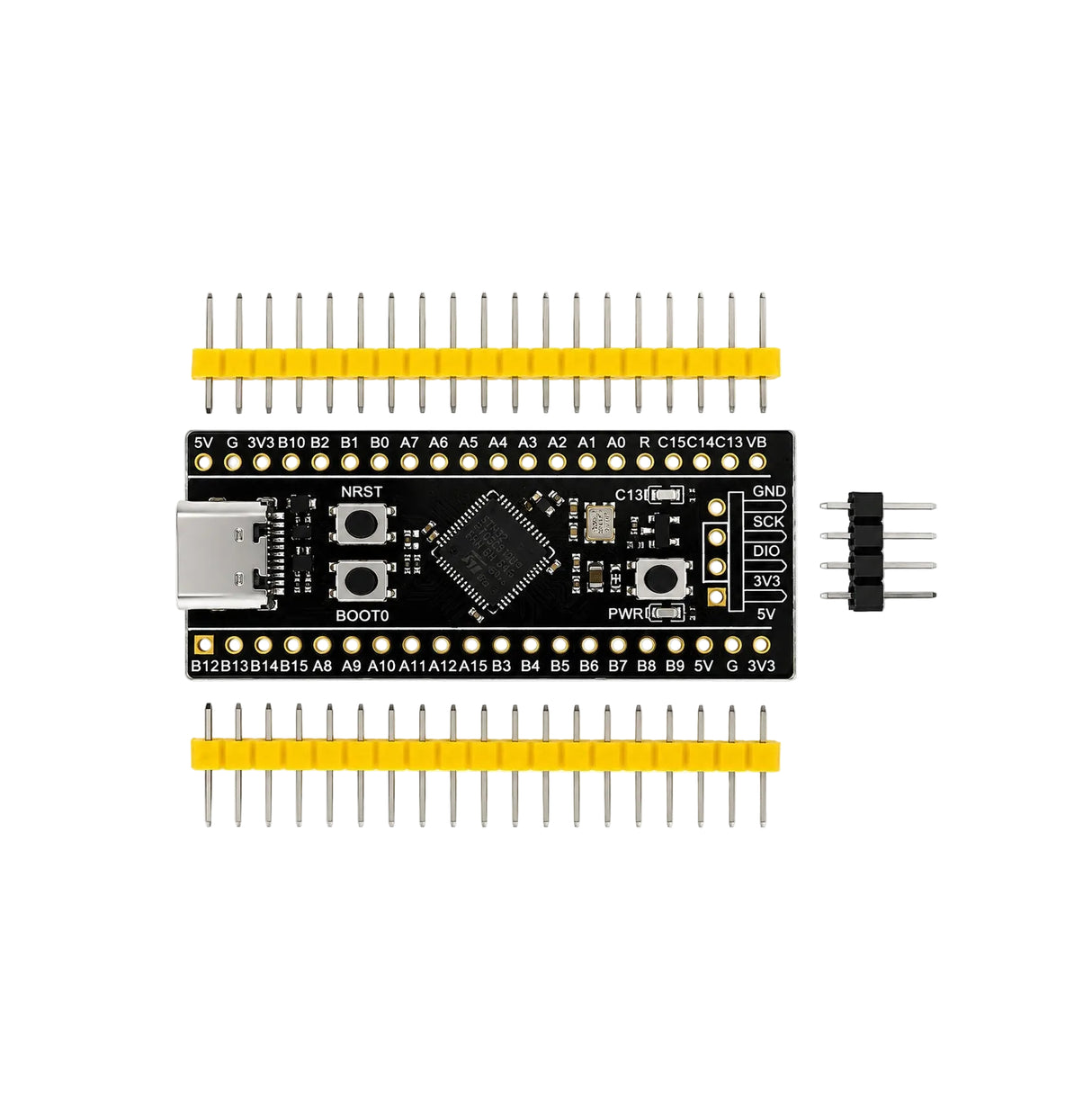

STM32F411CEU6 Development Board - Cortex-M4 100MHz

The STM32F411CEU6 is a compact and powerful microcontroller board designed for high performance embedded projects, making it an excellent choice for electronics enthusiasts, developers and DIY makers.

Based on the STM32F411CEU6 ARM Cortex-M4 microcontroller, this board offers a clock speed of up to 100MHz, providing significantly more processing power for demanding applications, real time control and advanced electronics projects.

With 512KB Flash memory and 128KB SRAM, it provides plenty of resources for developing embedded systems, robotics, automation, sensor applications and custom microcontroller projects.

Perfect for makers, students and STEM labs where high performance, compact design and flexibility are essential.

Highlights:

• ARM Cortex-M4 MCU: Powerful 32-bit architecture for advanced embedded applications.
• 100MHz Clock Speed: Fast processing for demanding and real time projects.
• Large Memory: 512KB Flash and 128KB SRAM for complex applications.
• Compact Design: Small form factor suitable for embedded and space constrained projects.
• SWD Programming: Standard SWD interface supporting ST-Link and J-Link programmers.


Specifications:

• Type: Microcontroller development board.
• Microcontroller: STM32F411CEU6.
• Core: ARM Cortex-M4.
• Clock Speed: Up to 100MHz.
• Flash Memory: 512KB.
• SRAM: 128KB.
• Power Supply: 3.3V or 5V via the corresponding power input.
• Pin Spacing: 2.54mm.
• Application: Embedded systems, robotics, automation, prototyping and DIY electronics.
• Dimensions: ~54×21×3mm.

• Weight: ~10g.

Ideal For:

• 🔧 High performance embedded projects.
• ⚡ Real time control and automation applications.
• 🤖 Robotics and microcontroller projects.
• 🧰 DIY electronics and advanced prototyping.
• 🎓 STM32 & STEM education projects.

Note:

• An external programmer or debugger such as ST-Link or J-Link can be connected through the SWD interface.
• When powering the board, connect the supply voltage to the corresponding 3.3V or 5V power port.
• Header pins included but are not soldered.
• Product appearance may vary slightly from the images shown.
• Text or markings on the board may differ depending on the batch.
