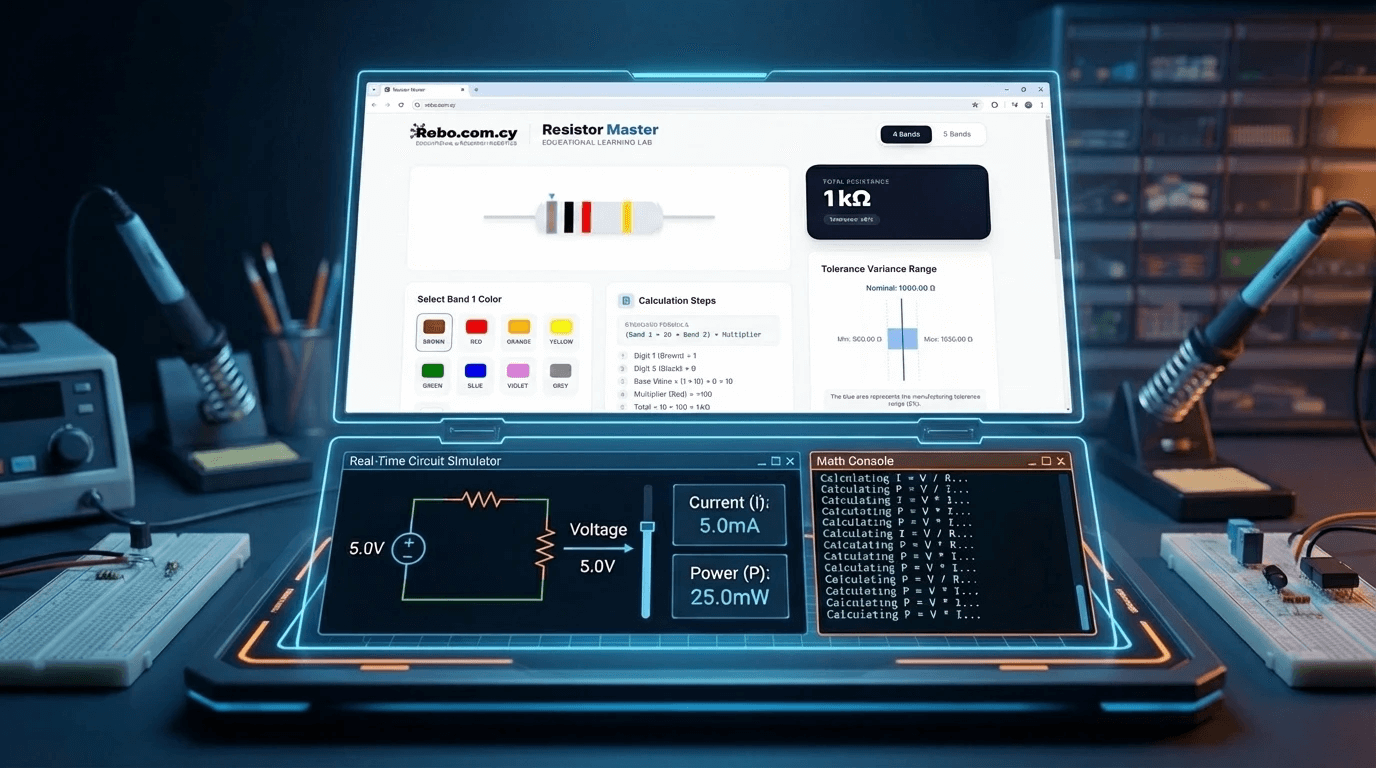

Introducing ROBO Resistor Master: A Math-First Learning Lab for Resistor Codes, Tolerance, and Real-World Circuits

If you’ve ever stared at a handful of resistors on your bench thinking, “Is this 1kΩ or 10kΩ?”—you’re not alone. Resistor color codes are a foundational electronics skill, but many students end up memorizing patterns without truly understanding what each band means in mathematical terms.

That is exactly why we built ROBO Resistor Master: a high-fidelity, interactive Educational Learning Lab that transforms resistor identification into a clear, step-by-step mathematical journey—then connects that value directly to Ohm’s Law and power dissipation in a real-time circuit simulator.

What is ROBO Resistor Master?

ROBO Resistor Master is a web app by ROBO designed for: electronics students building fundamentals, robotics hobbyists working on real circuits, and engineers who want fast, reliable bench reference without guesswork.

The goal is simple: remove the “magic” from resistor values by showing the math and the implications—clearly and interactively.

Interactive Multi-Band Resistor Visualizer (4-Band + 5-Band)

At the center of the experience is a dynamic, live-rendered resistor you can actually interact with. You can toggle between 4-band (standard) and 5-band (precision) resistors, click bands directly, and see the resistor update instantly.

• Toggle 4-Band / 5-Band mode for standard vs precision resistors
• Live SVG rendering that updates colors in real time
• Clickable bands (interactive hot-spots) to focus the selection tool
• Context-aware color picker that filters invalid options per band

A Transparent, “Math-First” Calculation Engine

Most resistor calculators stop at “here’s the answer.” That’s useful—but it’s not teaching. ROBO Resistor Master includes a dedicated Calculation Steps panel that shows the full logic behind each result.

• How digit bands concatenate into the base value
• How the multiplier applies a power-of-ten shift
• The final formula displayed in a clean, code-style format

Students see the arithmetic, not just the number—making it easier to build intuition and confidence.

Tolerance, Visualized: Min/Max Variance Range

In real electronics, a resistor’s nominal value isn’t guaranteed. A 1kΩ resistor with ±5% tolerance is not always 1000Ω—and that matters in measurement, design margins, and debugging.

ROBO Resistor Master visualizes tolerance using a simple, classroom-friendly range chart that clearly marks the nominal value and the manufacturing min/max variance range. This helps learners stop assuming components are perfect and start thinking like engineers.

Built-In Circuit Simulator: Ohm’s Law and Power in Real Time

After calculating your resistor value, the app places it into a virtual circuit so you can explore the real electrical impact. A voltage slider (0–100V) updates everything instantly, including:

• Current: I = V / R
• Power: P = V × I (and the equivalent P = I² × R)

This makes it easy to answer practical questions such as: “How much current flows at 5V?” or “At what voltage will the resistor dissipate too much power?”

The Math Console

To keep learning transparent, the simulator includes a terminal-style Math Console that prints the derivation line-by-line as you move the slider—so students can trace exactly how each value is calculated in real time.

AI Laboratory Assistant

Resistor values are not just numbers—they’re design choices. With Ask AI Tutor, ROBO Resistor Master can generate a concise, human-friendly explanation (under 150 words) tailored to the exact resistor configuration you selected.

• Common real-world use cases for that value (pull-ups, dividers, biasing, LED limiting, and more)
• Why tolerance matters in practical circuits and measurements

Why this matters for robotics education

ROBO Resistor Master was built with a simple philosophy: students learn faster when they understand why, not just what.

• Students gain confidence through transparent arithmetic and instant feedback
• Teachers get a visual aid for demonstrating tolerances and Ohm’s Law live in class
• Engineers get a reliable bench tool that respects real-world nuance (tolerance + power)

Closing

From color bands → to math → to tolerance → to real-time voltage, current, and power behavior—ROBO Resistor Master delivers the full learning loop in one place.

Whether you’re teaching a robotics class, learning electronics fundamentals, or moving faster at the bench, ROBO Resistor Master is designed to make resistor codes intuitive and circuit behavior tangible. Access the tool here: ROBO Resistor Master
